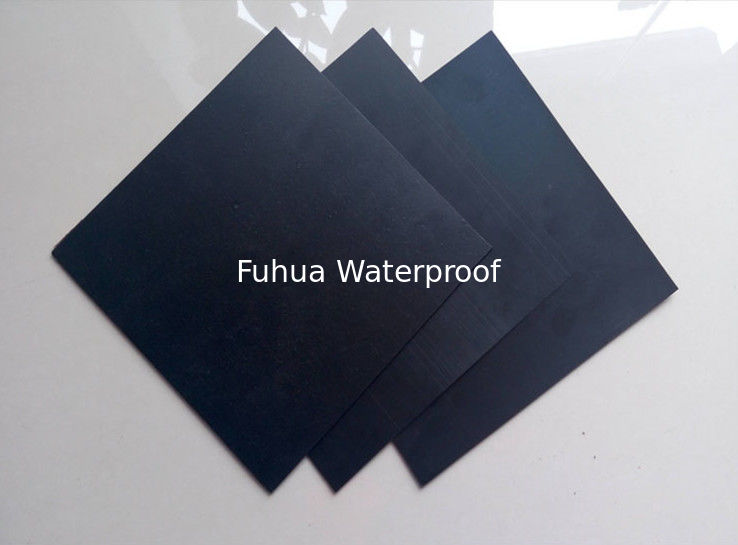

HDPE liner geomembrane is an excellent product for large applications that require UV and Ozone resistance,chemical resistance or high-quality installations. HDPE linerare a cost effective choice for exposed lining projects. This product has been used in aquaculture fish and shrimp pond.
Features:
Long lifespan
Strong elongation
Good UV resistant
Superior tensile strength
Environmental stress crack resistance
Technical Date:
|
Properties
|
Test Method
|
HDPE-Smooth
|
|
Thickness(min.ave.)
|
ASTM D 5199 Mm(mil)
|
0.75(30)
|
1.00(40)
|
1.5(60)
|
2.0(80)
|
2.5(100)
|
|
Density
|
ASTM D 792 g/cm3
|
≥0.94
|
≥0.94
|
≥0.94
|
≥0.94
|
≥0.94
|
|
Tensile Properties(min.ave.)
|
ASTM D 638 Tipo IV
|
|
|
|
|
|
|
Yield Strength
|
Kn/M(lb/in)
|
11(63)
|
15(84)
|
22(126)
|
29(168)
|
37(210)
|
|
Break Strength
|
Kn/M(lb/in)
|
20(114)
|
27(152)
|
40(228)
|
53(304)
|
67(380)
|
|
Yied Elongation
|
%
|
12
|
12
|
12
|
12
|
12
|
|
Break Elongation
|
%
|
700
|
700
|
700
|
700
|
700
|
|
Tear Resistance(min.ave.)
|
ASTM D 1004 N(lb)
|
93(21)
|
125(28)
|
187(42)
|
249(56)
|
311(70)
|
|
Puncture Resistance(min.ave.)
|
ASTM D 4833 N(lb)
|
240(54)
|
320(72)
|
480(108)
|
640(144)
|
800(180)
|
|
Carbon Black Content
|
ASTM D 1603 (%)
|
2~3
|
2~3
|
2~3
|
2~3
|
2~3
|
Applications:
1, HDPE geomembrane for environmental protection, sanitation, such as landfill, sewage treatment plant, power plant regulation pool, industrial, hospitals, solid wastes, etc.;
2, HDPE geomembrane suitable water conservancy projects, such as rivers and lakes of reservoir dam seepage and leakage, reinforcement, the canal seepage control, vertical wall, slope protection, etc
3, HDPE geomembrane in municipal engineering: the subway, building underground engineering, planting roof, roof garden, sewage pipe seepage control;
4, polyethylene anti-seepage film applicable garden: artificial lake, river, reservoir and golf course of the bottom of the pond, slope protection, green lawn waterproof, etc;
5, high density polyethylene geomembrane for petrochemical, chemical plants, refineries, storage tanks, seepage control, chemical reaction pool, sedimentation tank lining and secondary lining, etc.
6, polyethylene geomembrane suitable mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, the bottom line of the yard, tailings anti-seepage, etc;
7, low density polyethylene film applicable traffic facilities: highway foundation reinforcement and culverts of seepage control;
8, HDPE geomembrane suitable agriculture: reservoir, drinking pool, XuShuiTang of seepage control, irrigation system;
9, HDPE geomembrane suitable aquaculture: intensive, factory breeding pool, fish pond, shrimp ponds circle of lining, sea cucumber, slope protection, etc.;
10, HDPE geomembrane suitable salt industry: saltworks crystallization pool, halogen pool plastic film covering, salt film, salt pond Shan membrane.
