Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness

Name: Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness
Brand: FH
SKU: 1.5mm
Price: 8.70 USD
Availability: InStock
Rating: 4.6 (141 reviews)

Brand Name:	FH
Model Number:	1.5mm
MOQ:	500 square meters
Price:	CN¥8.70-43.48/square meters

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Warranty:

Lifetime

After-sale Service:

Online Technical Support, Free Spare Parts, Return And Replacement

Project Solution Capability:

Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation

Application:

Waterproof Project

Design Style:

Chinese

Type:

PVC, Waterproof Membrane

Product Name:

PVC Waterproof Membrane PVC Pool Liner

Usage:

Swimming Pool Material

Certificate:

ISO9001/14001, CE

Width:

1.65 1.83m , 2.0m Or Customized

Thickness:

0.9mm 1.0mm 1.2mm 1.5mm

Length:

20m 25m Or Cusotmized

Inside:

Polyester Reinforced

Color:

Blue, Mosaic, Water Ripple

Keyword:

Pvc Liner For Swimming Pool

Product Description

1.2mm1.5mm pvc liner for swimming pool

Color	blue,mosaic, water ripple or customized	Raw material	PVC
Thickness	0.5mm-2.0mm	Width	1.65m 1.83m or customized
Length	20m 25m or customized	Base weight	500-2500gsm
Mesh Density	9*9 or customized	Feature	a.UV resistant b.Durable c.High strength d.Mildew resistant e.Colorfast

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 0

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 1

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 2

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 3

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 4

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 5

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 6

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 7

Products details

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 8

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 9

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 10

Product Features

1.Exposed to sunshine: UV rays resistance, Long life, aging-resistant, can be over 20 years

2. Suitable for pools in all shapes Easy and quick installation

3. Easy to re-install,not easy to breed bacteria

4. Flexible and waterproof,high elasticity. No need drainage in winter

5. Good stain resistance,Simple and easy maintenance

6. Heat expands and cold contracts:synchronization

7. Structure cracking:performance will not be affected

Installation

1. related tools:

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 11

2.Pool bottom preparation:

Pool bottom kinds: concrete, steel construction, mosaic tile

Note: if it is concrete, it must be cement matte surface. Make sure it is flat, dry and no sand.

Clear the ready pool bottom well.

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 12

3. Glue and PVC liner operation

Mixed the two compensate glue well, then put it on the pool bottom and wall evenly and fully. Lay the PVC liner on it. Cut freely as the size, use welding gun to weld liner overlapping. With cork mood make the PVC liner more flat.

Note: the overlapping size at least 5cm

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 13

4. Second seal

Use liquid PVC do the side joint secondly to make sure good adhesive performance.

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 14

5. Other details

Please do other details handle, like water inlet/ outlet, light, etc. according to your design.

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 15

6.Acceptation inspection:

Enjoy pools.

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 16

Product Application

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 17

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 18

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 19

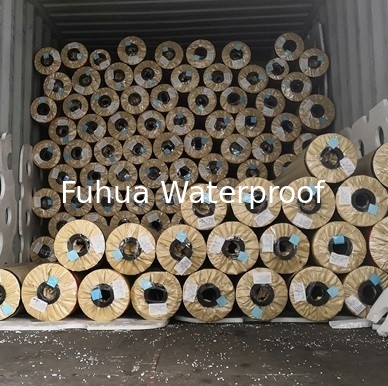

Packing & Delivery

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 20

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 21

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 22

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 23

Factory overview

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 24

Certificate

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 25

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 26

Customized 2000gsm 60mil Mosaic PVC Membrane for Swimming Pool 1.65m Wide Pool Liner 1.2mm Thickness 27

FAQ

Q1:How to get the sample?
A :We can provide you free samples for quality inspection.

Q2:What's are the MOQ?
A :The MOQ is 500 square meters usually.Also we can according to your condition to set the MOQ.

Q3:How about the delivery time?
A :Delivery time about 7days after your deposit or L/C at sight.

Q4:Can we visit your factory to inspect the goods for the order?
A :Welcome to visit our factory to inspect the quality.We sincerely hope to establish a honest business relationship.
