Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material

Brand Name:	FH
Model Number:	FH-PVC
MOQ:	500 square meters
Price:	CN¥18.12-32.61/square meters

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Warranty:

Lifetime

Feature:

High Strength, Sustainable, Durable

After-sale Service:

Online Technical Support, Free Spare Parts, Return And Replacement

Project Solution Capability:

Total Solution For Projects

Application:

Pool

Design Style:

Modern

Type:

PVC防水卷材, Waterproof Membrane

Material:

PVC

Shape:

Rolls

Core Material:

Polyester

Product Name:

PVC Pool Membrane

Usage:

Swimming Pool Material

Certificate:

ISO9001/14001, CE

Width:

1.65 1.83m , 2.0m Or Customized

Thickness:

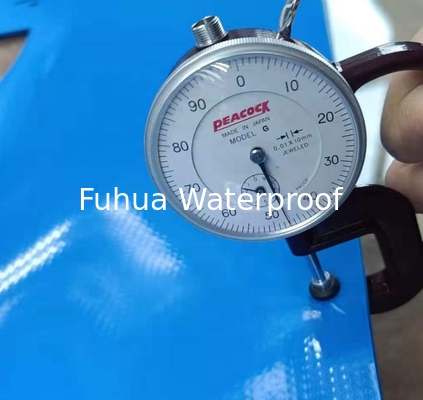

0.9mm 1.0mm 1.2mm 1.5mm

Length:

20m 25m Or Cusotmized

Inside:

Polyester Reinforced

Color:

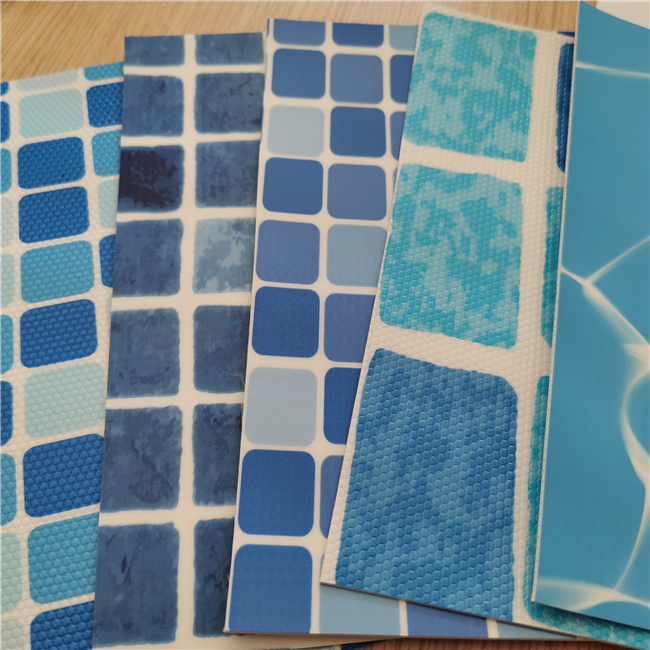

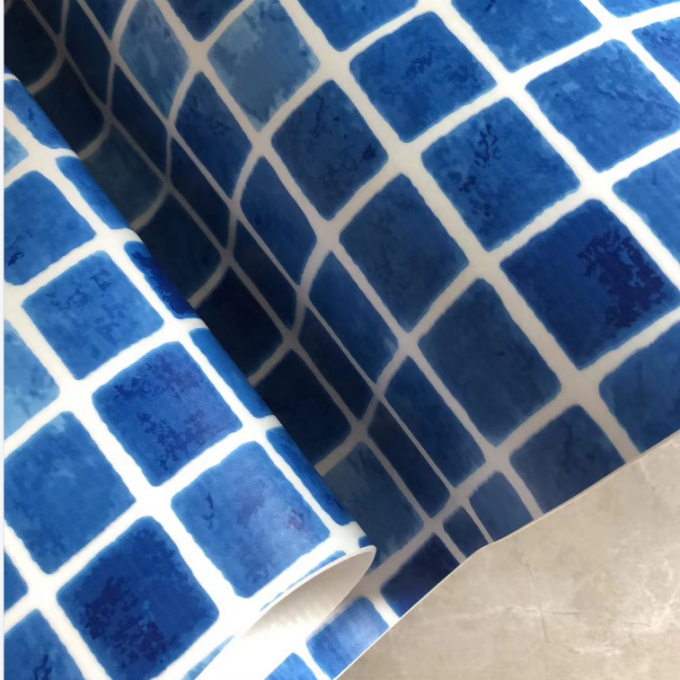

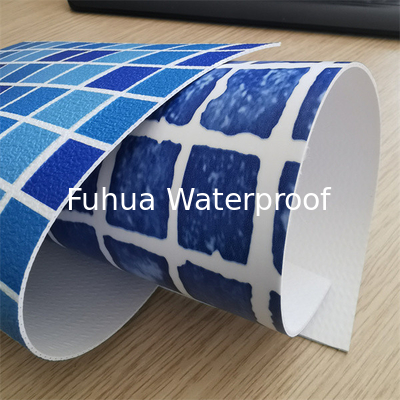

Blue, Mosaic, Water Ripple

Keyword:

Pvc Liner For Swimming Pool

Product Description

1.2mm1.5mm pvc pool membrane

Color	blue,mosaic, water ripple or customized	Raw material	PVC
Thickness	0.5mm-2.0mm	Width	1.65m 1.83m or customized
Length	20m 25m or customized	Base weight	500-2500gsm
Mesh Density	9*9 or customized	Feature	a.UV resistant b.Durable c.High strength d.Mildew resistant e.Colorfast

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 0

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 1

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 2

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 3

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 4

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 5

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 6

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 7

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 8

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 9

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 10

Products details

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 11

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 12

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 13

Product Features

1.Exposed to sunshine: UV rays resistance, Long life, aging-resistant, can be over 20 years

2. Suitable for pools in all shapes Easy and quick installation

3. Easy to re-install,not easy to breed bacteria

4. Flexible and waterproof,high elasticity. No need drainage in winter

5. Good stain resistance,Simple and easy maintenance

6. Heat expands and cold contracts:synchronization

7. Structure cracking:performance will not be affected

Installation

1. related tools:

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 14

2.Pool bottom preparation:

Pool bottom kinds: concrete, steel construction, mosaic tile

Note: if it is concrete, it must be cement matte surface. Make sure it is flat, dry and no sand.

Clear the ready pool bottom well.

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 15

3. Glue and PVC liner operation

Mixed the two compensate glue well, then put it on the pool bottom and wall evenly and fully. Lay the PVC liner on it. Cut freely as the size, use welding gun to weld liner overlapping. With cork mood make the PVC liner more flat.

Note: the overlapping size at least 5cm

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 16

4. Second seal

Use liquid PVC do the side joint secondly to make sure good adhesive performance.

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 17

5. Other details

Please do other details handle, like water inlet/ outlet, light, etc. according to your design.

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 18

6.Acceptation inspection:

Enjoy pools.

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 19

Product Application

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 20

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 21

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 22

Packing & Delivery

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 23

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 24

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 25

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 26

Factory overview

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 27

Certificate

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 28

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 29

Water Ripple Design PVC Pool Membrane 1.5mm Thickness for in Swimming Pool Material 30

FAQ

Q1:How to get the sample?
A :We can provide you free samples for quality inspection.

Q2:What's are the MOQ?
A :The MOQ is 500 square meters usually.Also we can according to your condition to set the MOQ.

Q3:How about the delivery time?
A :Delivery time about 7days after your deposit or L/C at sight.

Q4:Can we visit your factory to inspect the goods for the order?
A :Welcome to visit our factory to inspect the quality.We sincerely hope to establish a honest business relationship.
