High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs

High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs

Brand Name: FuHua
MOQ: 500 square meters
Price: CN¥3.63-36.24/square meters
Detail Information
Place of Origin:
Shandong, China
Warranty:
Lifetime
After-sale Service:
Online Technical Support, Onsite Installation, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Hotel, Welding
Design Style:
Chinese
Material:
Ethylene Propylene Diene Monomer (EPDM)
Sales Mode:
Factory Sales Directly
Surface:
Smooth Or Embossed
Advantage:
High Elasticity
Standard:
GB Standards ASTM Standard
Function:
Waterproofing, Anti Chemical
Width:
8m Widest
MOQ:
1000sqm
Sample:
Free
Product Description

 EPDM waterproof membrane

Product Description

EPDM waterproof membrane is made from ethylene propylene diene monomer (EPDM), adding into some chemical auxiliaries, for example, carbon black, nanophase modifier, plasticizer, vulcanization accelerator and others, it is one kind of polymer waterproof membrane with excellent performance elasticity.



Thickness  0.5mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm.
Roll Length 20m or customized
Width 1m, 1.2m, 1.5m, 2.0m or customized (0.2m-50m)
Color black, white and others

Type1 EPDM Smooth Surface

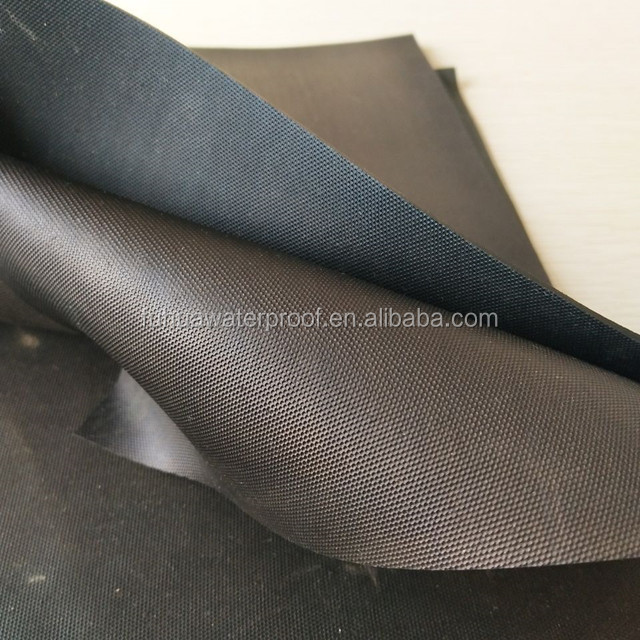

Type2 laminated fabric on the surface

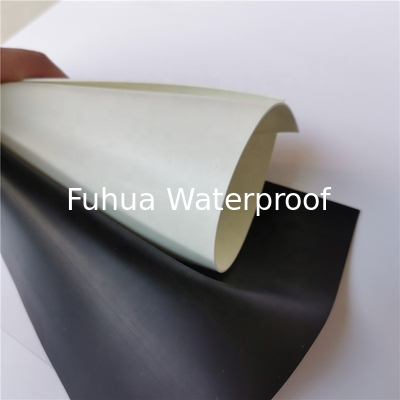

Type3 EPDM Membrane with one side self-adhesive

Type4 EPDM Membrane with two sides self-adhesive



High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 0





High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 1





High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 2



High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 3High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 4



High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 5

Specification



No.

Items

JL1

JL2

1

Tensile Strength (MPa)

23

7.5

4.0

60℃

2.3

0.8

2

Breaking Elongation

23

450%

400%

-20

200%

200%

3

Tear Strength kN/m

25

18

4

Impermeability, 0.3Mpa, 30 minutes

No leaking

No leaking

5

Low Temperature Flexibility

-40

-30

6

Thermal Stability (mm)

Extend

2

2

Shrink

4

4

7

Hot Air Aging (80×168h)

Tensile Retention

80%

90%

Breaking Elongation Retention

70%

70%

8

Alkali Resistance, Saturated Ca(OH)2 Solution, 23×168h

Tensile Retention

80%

80%

Breaking Elongation Retention

80%

90%

9

Ozone Aging(40℃×168h)

Elongation 40%, 500pphm

No crack

No crack

10

Artificial Weathering Aging

Tensile Retention

80%

80%

Breaking Elongation Retention

70%

70%

11

Bonding Peel Strength (Sheet and Sheet)

N/mm (Standard Test Conditions)

1.5

1.5

Soaking Retention Rate(23℃×168h)

70%

70%

Features

 1) Good weather fastness and dimensional stability.

2) Excellent performance to high and low temperature (-40℃ ~ +80), UV resistant and anti-corrosion.

3) Higher tensile strength and better extensibility under normal construction conditions.

4) Easy installation, solid joint, and no environmental pollution.

5) Good rooting penetration resistance.

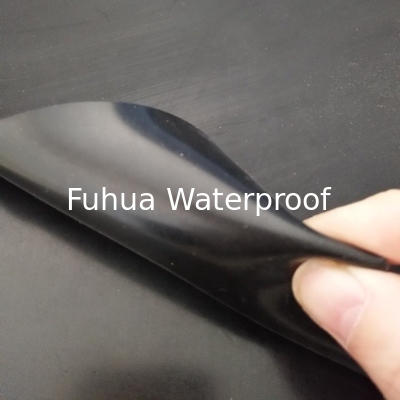

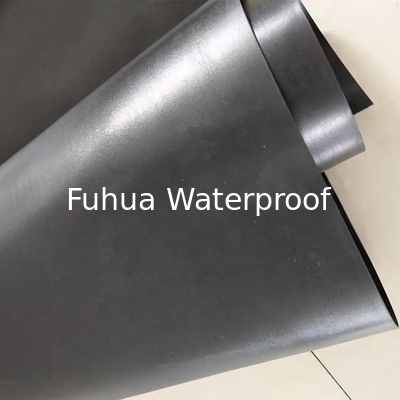

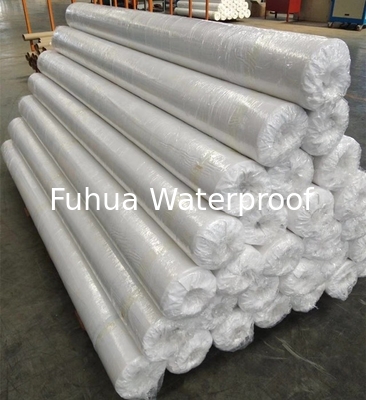

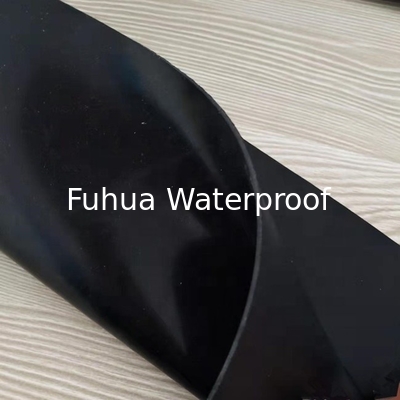

Product Show

 High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 6

High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 7

High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 8

High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 9



Application

1) Roofs, basement, toilet, bridge, underground, tunnel and dam.

2) Industrial and civil building waterproof.

3) Geo-synthetic liner for swimming pool, channels, irrigation system.

4) Especially for projects with high requirements in durability, anti-corrosion and deformation.

 High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 10

Company Information

Fuhua Waterproofing technology Co., Ltd is one professional manufacturer in waterproof materials. It was built since 1998 and covers an area of more than 30,000 square meters, with registered capital USD1,500,000. The company is located in Shouguang City, Shandong Province.

High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 11High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 12High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 13High Elasticity EPDM Rubber Membrane The Ultimate Waterproofing Solution for Concrete Roofs 14

FAQ



Q1:How to get the sample?
A :We can provide you free samples for quality inspection.


Q2:What's are the MOQ?
A :The MOQ is 500 square meters usually.Also we can according to your condition to set the MOQ.

Q3:How about the delivery time?
A :Delivery time about 7days after your deposit or L/C at sight.

Q4:Can we visit your factory to inspect the goods for the order?
A :Welcome to visit our factory to inspect the quality.We sincerely hope to establish a  honest business relationship.
