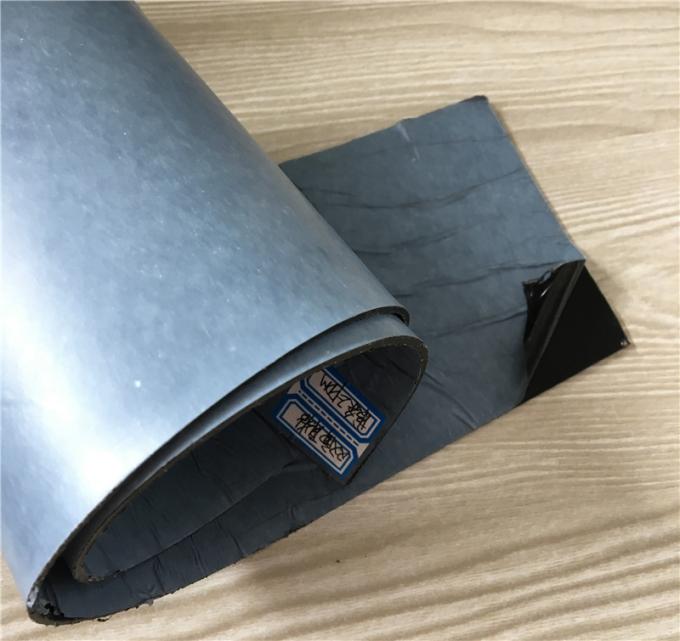

EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project

EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project

Brand Name: FuHua
MOQ: 500 square meters
Price: CN¥3.63-36.24/square meters
Detail Information
Place of Origin:
Shandong, China
Warranty:
Lifetime
After-sale Service:
Online Technical Support, Free Spare Parts
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Waterproof Project
Design Style:
Chinese
Usage:
Waterproof Projects
Material:
Ethylene Propylene Diene Monomer (EPDM)
Sales Mode:
Factory Sales Directly
Sample:
Free
Advantage:
High Elasticity
Standard:
GB Standards ASTM Standard
Type:
Self Adheisve
Width:
0.5-8m
Color:
Black Or Customized
Use:
Waterproofing Project
Product Description

Self adhesive EPDM rubber waterproof membrane

Product Description

EPDM Self adhesive waterproof membrane is made from ethylene propylene diene monomer (EPDM), adding into some chemical auxiliaries, for example, carbon black, nanophase modifier, plasticizer, vulcanization accelerator and glue releasing film on the surface, it is one kind of polymer waterproof membrane with excellent performance elasticity.



Thickness  0.5mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm.
Roll Length 20m or customized
Width 1m, 1.2m, 1.5m, 2.0m, 3m or customized
Color black, white.

Type1 EPDM Smooth Surface

Type2 laminated fabric on the surface

Type3 EPDM Membrane with one side self-adhesive

Type4 EPDM Membrane with two sides self-adhesive

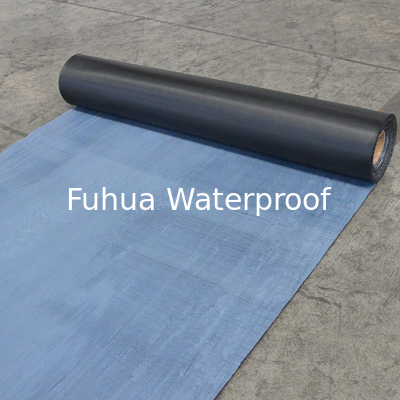

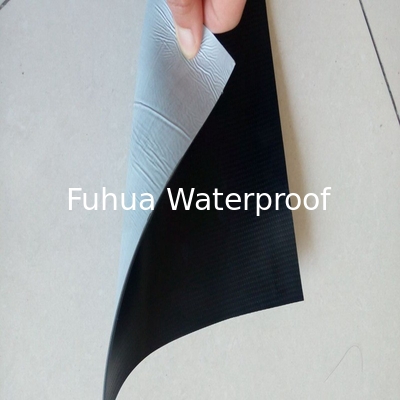

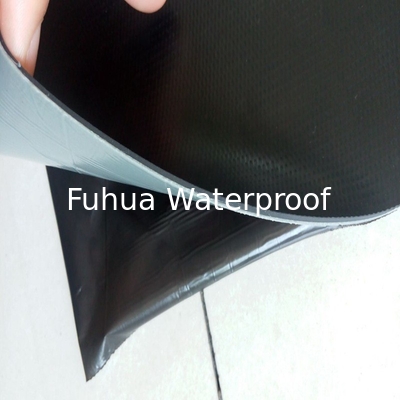

 EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 0



 EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 1





 EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 2



EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 3

EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 4





Specification



No.

Items

JL1

JL2

1

Tensile Strength (MPa)

23

7.5

4.0

60℃

2.3

0.8

2

Breaking Elongation

23

450%

400%

-20

200%

200%

3

Tear Strength kN/m

25

18

4

Impermeability, 0.3Mpa, 30 minutes

No leaking

No leaking

5

Low Temperature Flexibility

-40

-30

6

Thermal Stability (mm)

Extend

2

2

Shrink

4

4

7

Hot Air Aging (80×168h)

Tensile Retention

80%

90%

Breaking Elongation Retention

70%

70%

8

Alkali Resistance, Saturated Ca(OH)2 Solution, 23×168h

Tensile Retention

80%

80%

Breaking Elongation Retention

80%

90%

9

Ozone Aging(40℃×168h)

Elongation 40%, 500pphm

No crack

No crack

10

Artificial Weathering Aging

Tensile Retention

80%

80%

Breaking Elongation Retention

70%

70%

11

Bonding Peel Strength (Sheet and Sheet)

N/mm (Standard Test Conditions)

1.5

1.5

Soaking Retention Rate(23℃×168h)

70%

70%

Features

 1) Good weather fastness and dimensional stability.

2) Excellent performance to high and low temperature (-40℃ ~ +80), UV resistant and anti-corrosion.

3) Higher tensile strength and better extensibility under normal construction conditions.

4) Easy installation, solid joint, and no environmental pollution.

5) Good rooting penetration resistance.

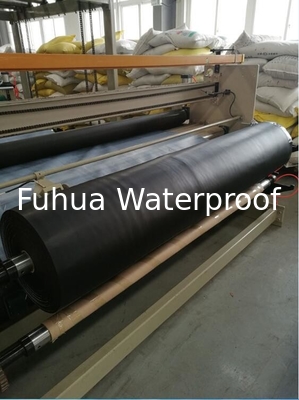

Product Show

 EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 5

EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 6

EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 7

EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 8



Application

1) Roofs, basement, toilet, bridge, underground, tunnel and dam.

2) Industrial and civil building waterproof.

3) Geo-synthetic liner for swimming pool, channels, irrigation system.

4) Especially for projects with high requirements in durability, anti-corrosion and deformation.

 EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 9

Company Information

Fuhua Waterproofing technology Co., Ltd is one professional manufacturer in waterproof materials. It was built since 1998 and covers an area of more than 30,000 square meters, with registered capital USD1,500,000. The company is located in Shouguang City, Shandong Province.

EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 10EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 11EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 12EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 13

EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project 14

FAQ



Q1:How to get the sample?
A :We can provide you free samples for quality inspection.


Q2:What's are the MOQ?
A :The MOQ is 500 square meters usually.Also we can according to your condition to set the MOQ.

Q3:How about the delivery time?
A :Delivery time about 7days after your deposit or L/C at sight.

Q4:Can we visit your factory to inspect the goods for the order?
A :Welcome to visit our factory to inspect the quality.We sincerely hope to establish a  honest business relationship.
