Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction

Name: Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction
Brand: FH-PVC
SKU: PVC liner
Price: 8.70 USD
Availability: InStock
Rating: 4.8 (110 reviews)

Brand Name:	FH-PVC
Model Number:	PVC liner
MOQ:	500 square meters
Price:	CN¥8.70-43.48/square meters
Supply Ability:	20000 Square Meter/Square Meters per Day pvc liner for pool with mesh

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

Pool, Waterproof Membrane

Product Name:

PVC Waterproof Membrane

Usage:

Swimming Pool Material

Certificate:

ISO9001/14001

Width:

1.83m , 2.05m

Thickness:

0.9mm 1.0mm 1.2mm 1.5mm

Length:

20m 25m

Inside:

Reinforced

Color:

Blue, Mosaic, Water Ripple,white

Keyword:

Pvc Liner For Pool With Mesh

Port:

Qingdao China

Packaging Details:

pvc liner for pool with mesh : on roll wrapped by woven or kraft paper bag

Supply Ability:

20000 Square Meter/Square Meters per Day pvc liner for pool with mesh

Product Description

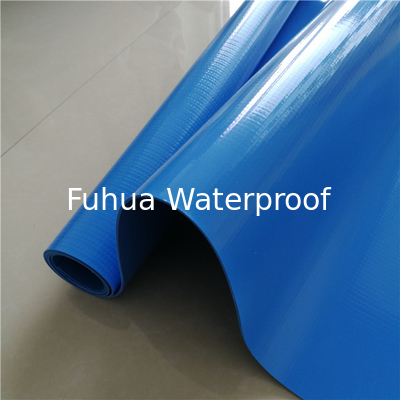

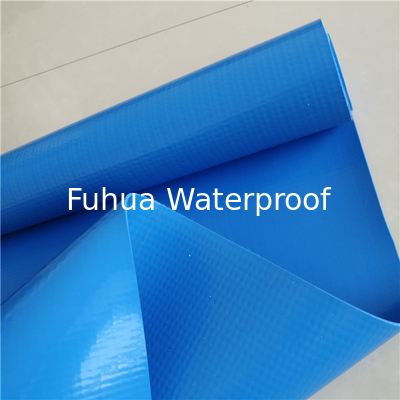

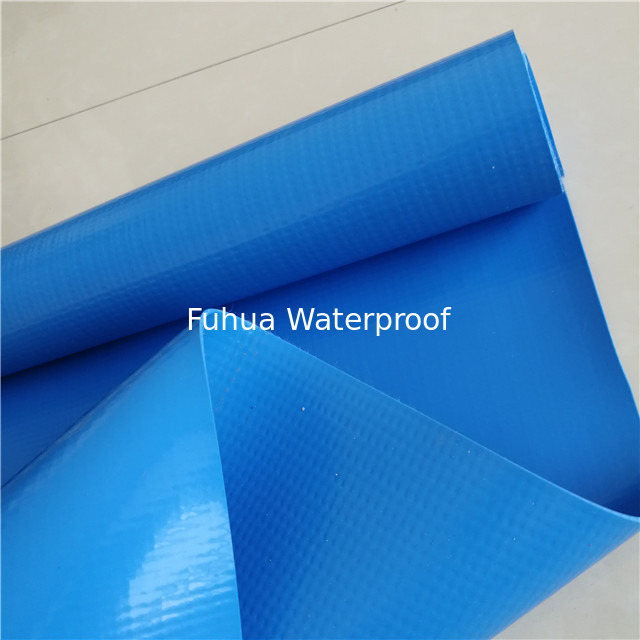

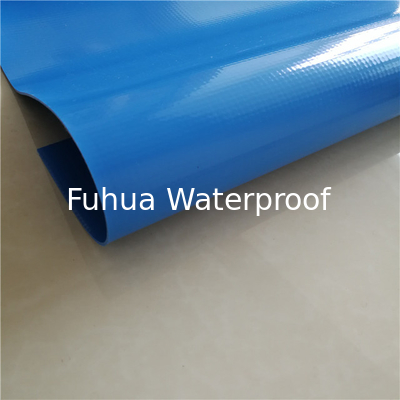

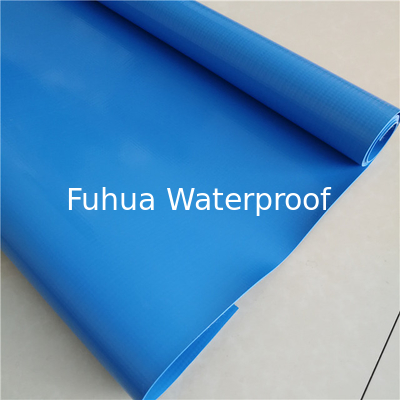

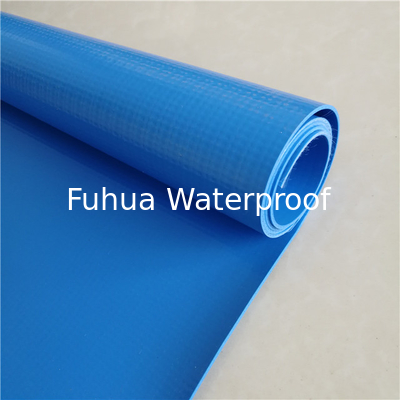

pvc liner for pool with mesh

PVC Liner

PVC Pool liner is one kind of Polyvinyl chloride liner, reinforced with polyester mesh, mixing additives,stabilizers,etc.The product is corrosion-resistant and chlorine-resistant. It has excellent size stability and lower thermal expansion coefficient, so it has strong adaptability to the external environment.

Composition: PVC sheet and polyester net frame in the middle

Thickness:	0.9mm, 1.0mm, 1.2mm, 1.5mm, 1.8mm, 2.0mm.
Width:	1.65m, 1.83m, 2.05m
Length:	20m 25m or customized
Color:	bule with white, mosaic, light blue, dark blue, any color you prefer

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 1

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 2

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 3

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 4

Products details

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 5

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 6

Product Features

1.Exposed to sunshine: UV rays resistance, Long life, aging-resistant, can be over 20 years

2. Suitable for pools in all shapes Easy and quick installation

3. Easy to re-install,not easy to breed bacteria

4. Flexible and waterproof,high elasticity. No need drainage in winter

5. Good stain resistance,Simple and easy maintenance

6. Heat expands and cold contracts:synchronization

7. Structure cracking:performance will not be affected

Installation

1. related tools:

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 7

2.Pool bottom preparation:

Pool bottom kinds: concrete, steel construction, mosaic tile

Note: if it is concrete, it must be cement matte surface. Make sure it is flat, dry and no sand.

Clear the ready pool bottom well.

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 8

3. Glue and PVC liner operation

Mixed the two compensate glue well, then put it on the pool bottom and wall evenly and fully. Lay the PVC liner on it. Cut freely as the size, use welding gun to weld liner overlapping. With cork mood make the PVC liner more flat.

Note: the overlapping size at least 5cm

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 9

4. Second seal

Use liquid PVC do the side joint secondly to make sure good adhesive performance.

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 10

5. Other details

Please do other details handle, like water inlet/ outlet, light, etc. according to your design.

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 11

6.Acceptation inspection:

Enjoy pools.

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 12

Product Application

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 13

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 14

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 15

Packing & Delivery

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 16

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 17

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 18

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 19

Factory overview

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 20

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 21

Certificate

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 22

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 23

Swimming Pool Material Pvc Liner with Water Ripple Mesh Coating Construction 24

FAQ

Q1:How to get the sample?
A :We can provide you free samples for quality inspection.

Q2:What's are the MOQ?
A :The MOQ is 500 square meters usually.Also we can according to your condition to set the MOQ.

Q3:How about the delivery time?
A :Delivery time about 7days after your deposit or L/C at sight.

Q4:Can we visit your factory to inspect the goods for the order?
A :Welcome to visit our factory to inspect the quality.We sincerely hope to establish a honest business relationship.
