Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy

Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy

Brand Name: Fuhua
Model Number: FH-01
MOQ: 1000 square meters
Price: CN¥21.74/square meters
Detail Information
Place of Origin:
China
Warranty:
More Than 5 Years
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Waterproof Project, Concrete Construction
Design Style:
Chinese
Product Name:
SBS Modified Bitumen Rubber Self Adhesive Roofing
Type:
Waterproof Membrane
Thickness:
2.0mm 2.5mm 3.0mm 3.5mm 4.0mm
Width:
50mm-1000mm
Length:
7.5m 10m 15m 20m
Usage:
Waterproof Projects
Surface Material:
PE Film Fine Sand Mineral Slates, Alu. Foil
Middle Base:
Fibreglass Or Polyester Base
Certificate:
IOS9001 14001
Product Description

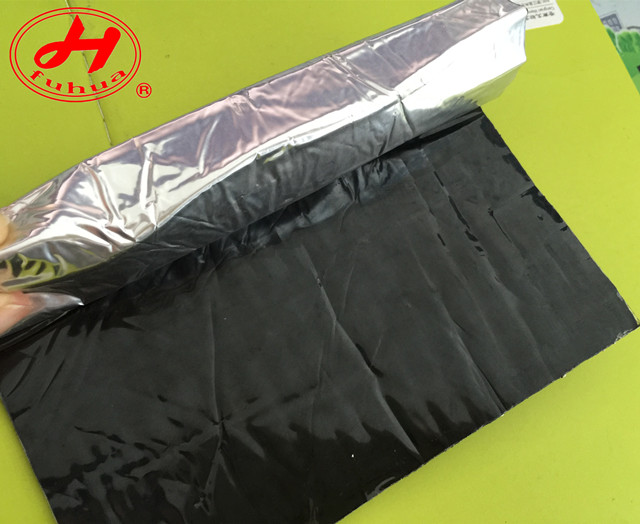

 Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 0

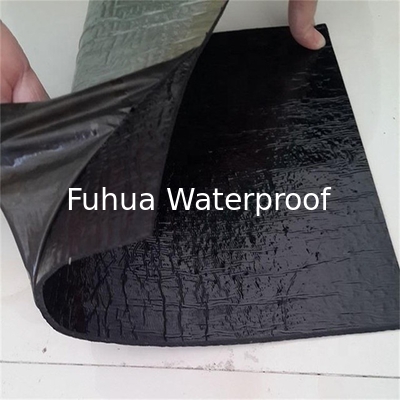

4mm thickness SBS modified bitumen rubber self adhesive

roofing waterproofing membrane



Product Description

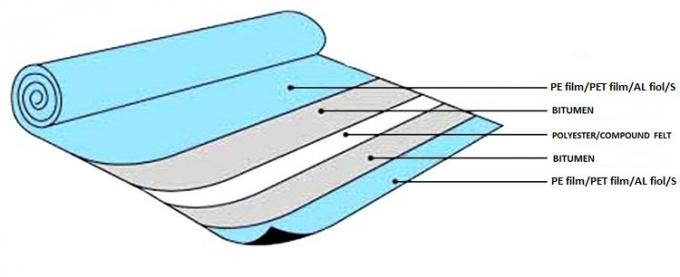

This product is made in the following way:base materials are firstly dipped into asphalt or thermoplastics(e.g. APP or APAO) and modified asphalt;then both surfaces are coated with elastomer or plastic asphalt; fine sands and mineral grains(pieces) or polyethylene membranes are spread or covered on its upper surface; fine sands or polyethylene membranes are spread or covered on its lower surface.

It has a good waterproof performance and aging-resistant capacity.It does not drip in high temperature,nor does break in low temperature.It is easy to use in construction,with no polluton to enviroment but a long service life.

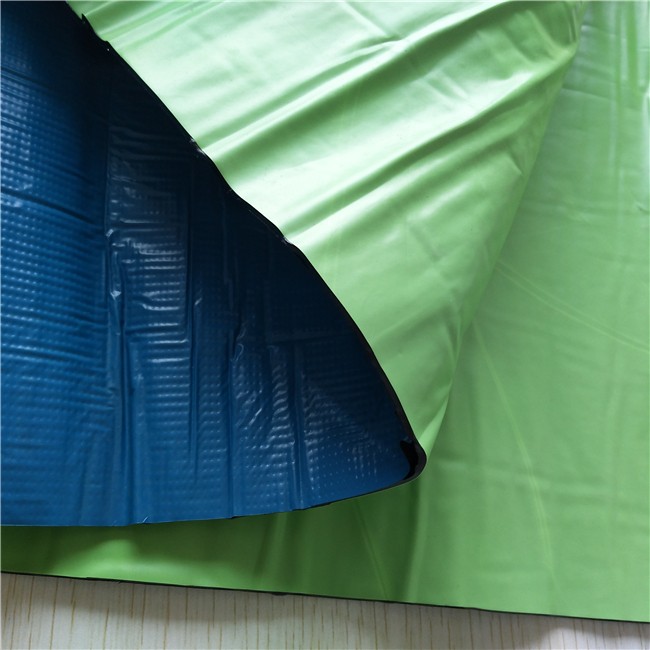

Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 1

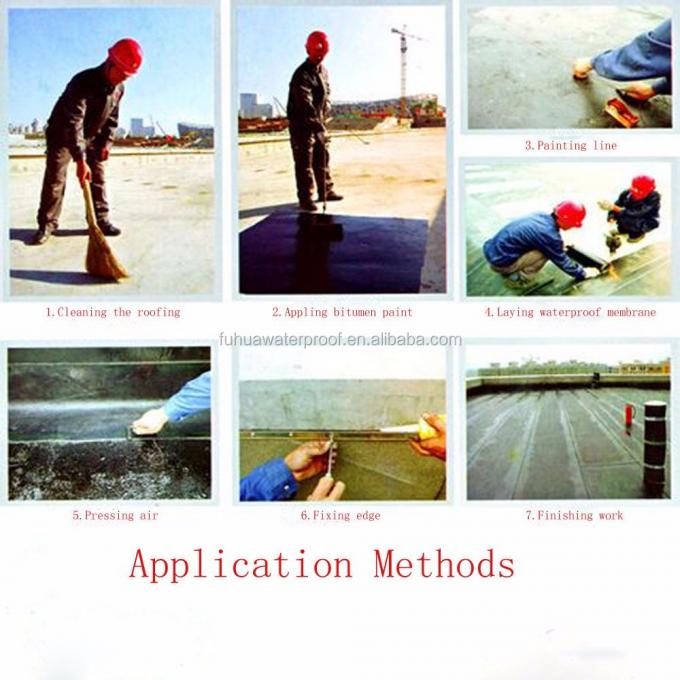

Application method



 Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 2



1.Make sure the roof deck smooth ,clean and dry(Moisture<9%),then apply the surface of roof deck homogeneously with a kind bitumen paint till dry to start application.

2.There are two methods in application:

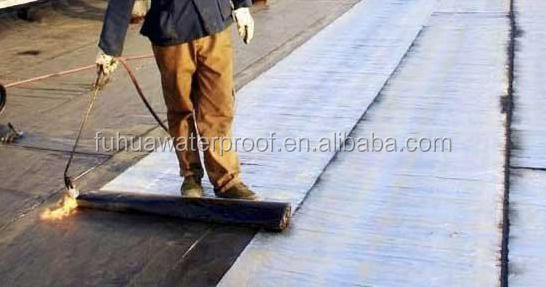

One way is by heating and melting method---Heat the polyethylene film of the membrane and roof deck surface by heating and melting method to be nearly melted (not flowing),then install the membrane fully bonded to the roof deck with overlaps of 5-10cm.

The other way is by cold adhesive method---Pour the cold adhesive homogeneously on the roof deck then roll the membrane to install it to be fully sticked to roof deck.

By heating and melting method and by cold adhesive can be used in alternation in application as requested.

3.After application ,a full serious inspection is required to make sure no air bubble ,no fold,no falling away etc to guarantee the waterproof life.


Attention:

Construction shall not be carried out in rain, snow or over 5 degree wind weather; Thereshall be sufficient safety protective facilities in construction site, place firefighting devices according to stipulations

1)Clean the substrate using broom or high pressure dusty cleaner

2)Apply primer

3)Heat the membrane bottom using a high temperature flame gun

4)Push forward while the primer and membrane oil melted

5)Use a roller to push hard the membrane surface to ensure it stick firmly

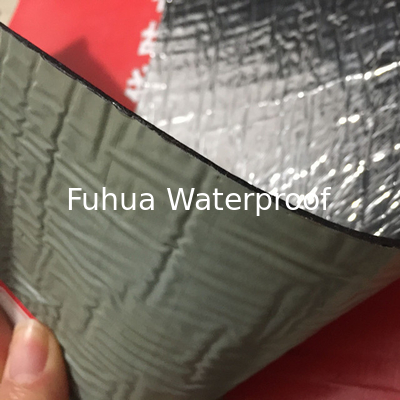

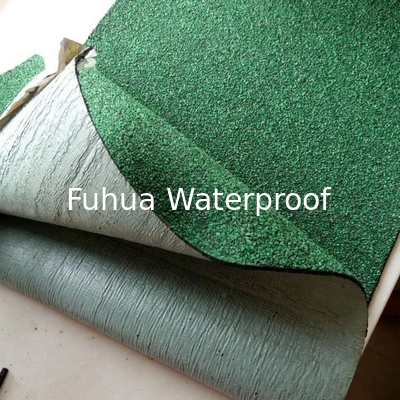

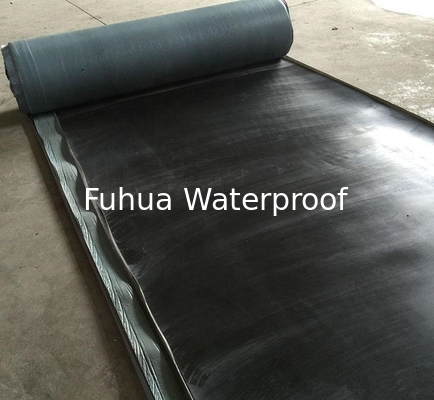

Product show

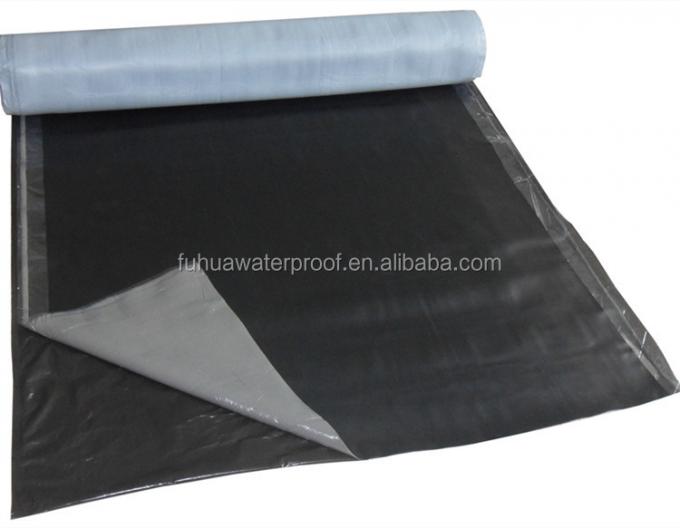

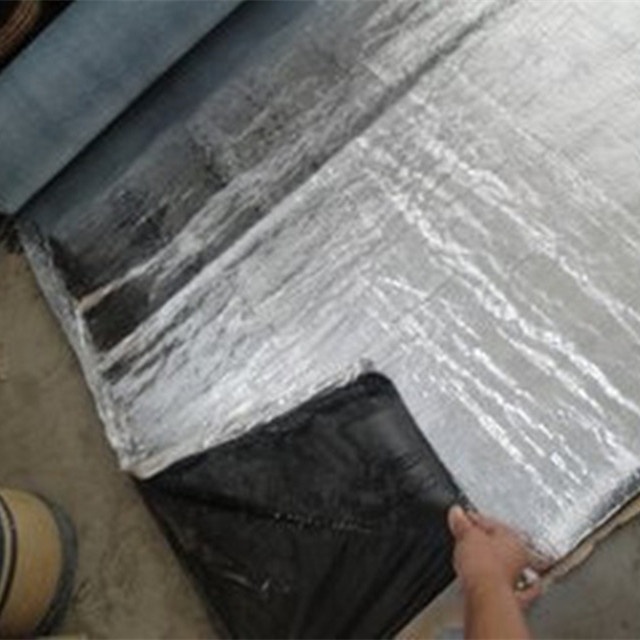

Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 3Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 4





Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 5



Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 6



 Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 7

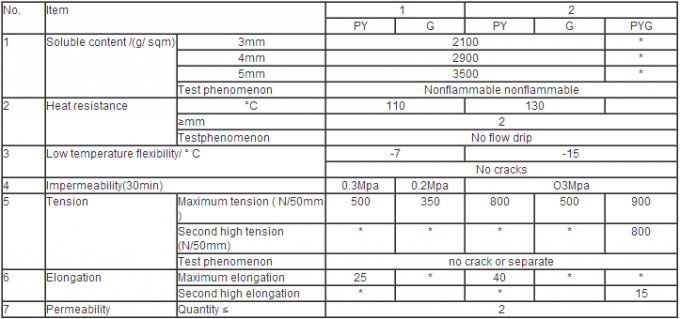

Technical datas



Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 8



Where to use

 Roofs; Pools, such as swimming pools, fire pools;

 Subways, tunnels, concrete roads or bridge surfaces;

 Sewage plants, garbage burying projects;



 Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 9

Product Features:

1) Good waterproof performance.

2) High tensile and tearing strength, elongation and size stability which accommodates substrate movement and deformation.

3) APP Modified Bitumen Waterproof Membrane is better for building waterproof with high temperature.

4) Anti-puncture and rooting resistant, fatigue resistant, anti-corrosion, mildew resistant and weather resistant.

5) Easily operate with hot-melting method.

Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 10



Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 11Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 12

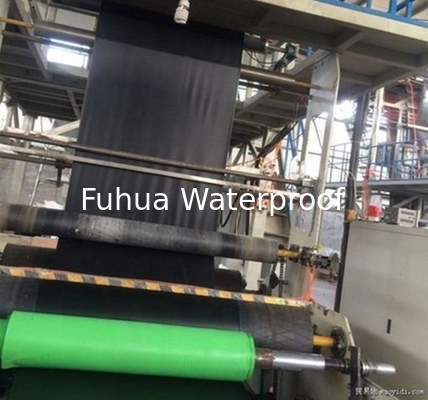

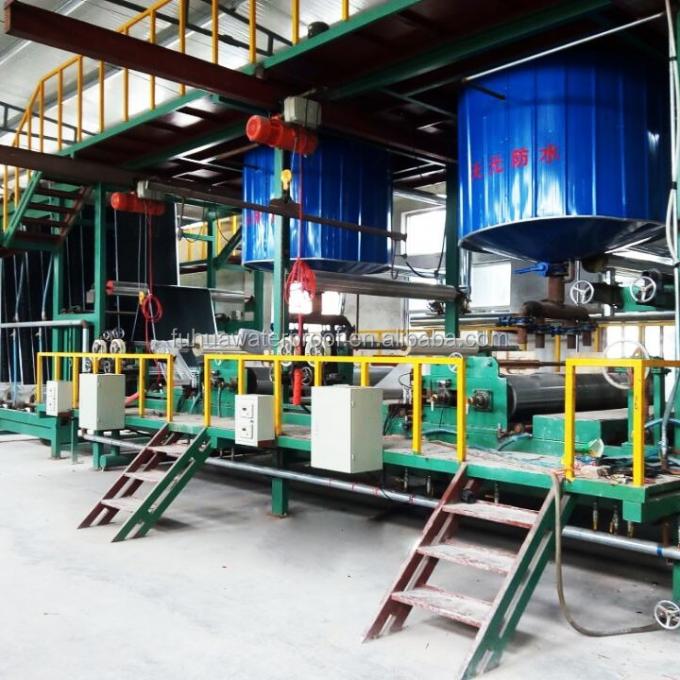

Production



 Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 13

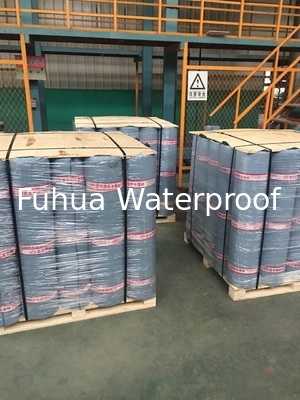

Packaging & Shipping



APP-GMmaterial is packed in rolls with plastic bags.



Thickness

Roll Size

Rolls / Pallet

Pallets / 20’ Container

3 mm

10 m2

25

20

4 mm

10 m2

20

20

5 mm

10 m2

20

20

Above quantities are only for your reference.



Self Adhesive Roofing Membrane with Green Sand Modified Bitumen Middle Base Fibreglass or Polyester Base Durable and Easy 14



Our Services



1.   Our warranty period is one year against the date of shipment.

2.   Free samples of waterproof membranes are available for your closer checking.

3.   Well trained and experienced sales person to help you with any of your questions.

4.   Strong technical support.

5.   We will handle with each piece of document which are necessary during export to abroad and try our best to provide any special required document in destination customs. Such as the certificate of origin.
