Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material

Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material

Brand Name: Fuhua
Model Number: FH-01
MOQ: 500 square meters
Price: CN¥14.50-27.54/square meters
Supply Ability: 50000 Square Meter/Square Meters per Day heat torch SBS bitumen rubber roof waterproofing sheet
Detail Information
Place of Origin:
Shandong, China
Warranty:
Lifetime
After-sale Service:
Online Technical Support, Onsite Installation, Onsite Training, Onsite Inspection, Free Spare Parts, Return And Replacement
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Waterproof Project
Design Style:
Chinese
Type:
Waterproof Membrane
Thickness:
2.0mm 2.5mm 3.0mm 3.5mm 4.0mm
Width:
50mm-1000mm
Length:
7.5m 10m 15m 20m
Usage:
Waterproof Projects
Surface Material:
PE Film Fine Sand Mineral Slates, Alu. Foil
Middle Base:
Fibreglass Or Polyester Base
Certificate:
IOS9001 14001, CE Certification
Product Name:
SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane
Using:
Tarching
Port:
Qingdao Port
Packaging Details:
packed with pallets or customized for heat torch SBS bitumen rubber roof waterproofing sheet
Supply Ability:
50000 Square Meter/Square Meters per Day heat torch SBS bitumen rubber roof waterproofing sheet
Product Description



Heat torch SBS bitumen rubber roof waterproofing sheet



Product Description

Specification:



Thickness:3mm,4mm,5mm

Width:1.0m

Length:7.5m,10m

Surface Materials:fine sand, slate flakes

Middle reforcement material:polyester felt, fibre glass felt



Using method Torching

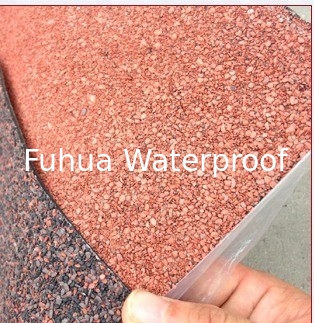

Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material 0Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material 1





Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material 2

Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material 3

Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material 4Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material 5



Introduction



SBS elastomer modified bitumen waterproof membrane takes SBS (styrene butadiene styrene) thermoplastic elastomer odified asphalt as dip coating material, takes high quality polyester (PY), fiberglass (G) ,fiberglass & polyethylene felt (PYG) as base materials,takes sand (S) ,mineral schist (M) ,polyethylene film (PE) ,etc as surface,which is produced by stirring and grinding with special equipment



APP waterproof membrane is made in the following way:base materials are firstly dipped into asphalt or thermoplastics(e.g. APP or APAO) and modified asphalt;then both surfaces are coated with elastomer or plastic asphalt; fine sands and mineral grains(pieces) or polyethylene membranes are spread or covered on its upper surface; fine sands or polyethylene membranes are spread or covered on its lower surface.



It has a good waterproof performance and aging-resistant capacity.It does not drip in high temperature,nor does break in low temperature.It is easy to use in construction,with no polluton to enviroment but a long service life.



Diffrence between SBS and APP membrane:



SBS modified bitumen waterproof membrane is specially suitable to the buildings in cold area and to the buildings of changeable construction.

APP membrane is suitable to areas of high temperature and of strong sun-shine.



Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material 6

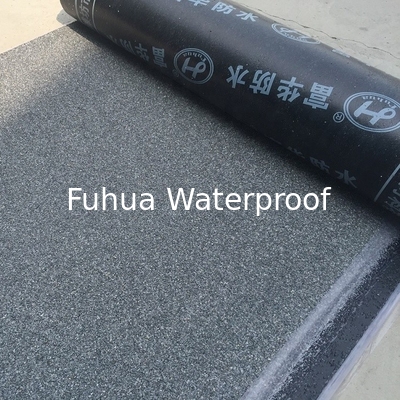

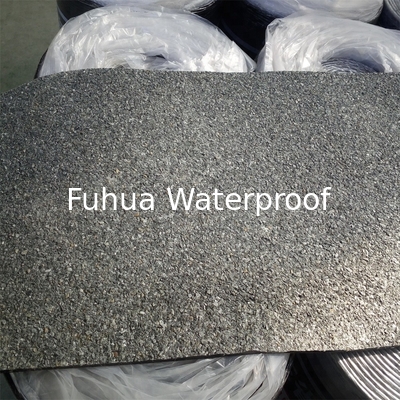

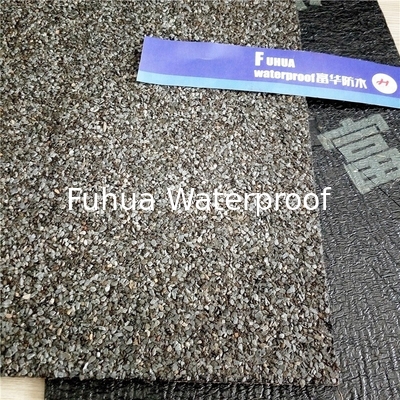

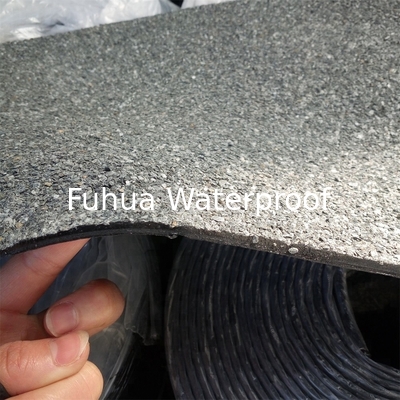

Product show

Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material 7





Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material 8



Where to use



 Roofs; Pools, such as swimming pools, fire pools;

 Subways, tunnels, concrete roads or bridge surfaces;

 Sewage plants, garbage burying projects;



 Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material 9



Product Features:

1) Good waterproof performance.

2) High tensile and tearing strength, elongation and size stability which accommodates substrate movement and deformation.

3) APP Modified Bitumen Waterproof Membrane is better for building waterproof with high temperature.

4) Anti-puncture and rooting resistant, fatigue resistant, anti-corrosion, mildew resistant and weather resistant.

5) Easily operate with hot-melting method.



Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material 10Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material 11



Production



Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material 12

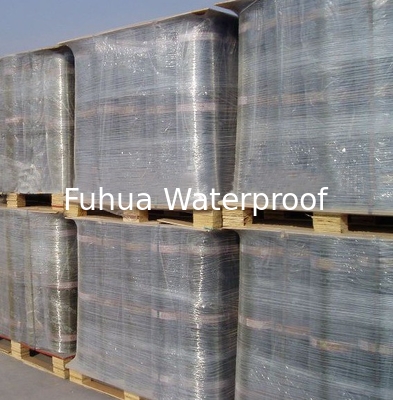

Packaging & Shipping



APP-GMmaterial is packed in rolls with plastic bags.



Thickness

Roll Size

Rolls / Pallet

Pallets / 20’ Container

3 mm

10 m2

25

20

4 mm

10 m2

20

20

5 mm

10 m2

20

20

Above quantities are only for your reference.



Tarching Made Easy with SBS/APP Mineral Granule Torched-on Bitumen Waterproof Membrane Fine Sand Surface Material 13



Our Services



1.   Our warranty period is one year against the date of shipment.

2.   Free samples of waterproof membranes are available for your closer checking.

3.   Well trained and experienced sales person to help you with any of your questions.

4.   Strong technical support.

5.   We will handle with each piece of document which are necessary during export to abroad and try our best to provide any special required document in destination customs. Such as the certificate of origin.
