FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material

FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material

Brand Name: Fuhua
Model Number: FH-TPO
MOQ: 1000 square meters
Price: CN¥28.99/square meters
Detail Information
Place of Origin:
Shandong, China
Warranty:
Lifetime
Material:
TPO
Feature:
Water Resistant, Anti-aging, High Strength, Eco Friendly, UV Resistant, Mildew Resistant, Cold Resistance - 25°c, Moistureproof, Heat & Corrosion Resistance, Rust Protection
Shape:
Rolls
After-sale Service:
Online Technical Support, Free Spare Parts, Return And Replacement
Length:
Customized, 20m Or Customized
Project Solution Capability:
Graphic Design, Total Solution For Projects, Cross Categories Consolidation
Application:
Waterproofing Project, Roofs Tunnel Pool Basement Garbage Disposal Facilities
Design Style:
Chinese
Roofing Product Type:
Insulation, Underlayment, Coverboard, Roofingfelt
Type:
Waterproof Membrane
Thickness:
1.0mm/1.2mm/1.5mm/1.8mm/2.0mm
Width:
1m-2.1m
Color:
White Grey Blue Red And So On
Surface Treatment:
Smooth, Embossed And Customized
Main Material:
TPO
Usage:
Waterproof Projects
Product Name:
TPO Roofing Membrane
Product Description





Thermoplastic Polyolefin roofing membrane /

TPO Waterproof Membrane for roof



Product Description

TPO waterproof membrane is a waterproof sheet, consisting of thermoplastic polyolefin compound resin materials as the base stock, also reinforced with fiber backing materials, and manufactured by advanced extrusion machining technology.



Specification:

Thickness(mm)

1mm, 1.2mm, 1.5mm, 1.8mm, 2.0mm

Width(m)

1/2/2.0/3.0/4.0m

Length(m/roll)

10/15/20/25m

Color

Black, White or as customized



 Kinds:

H type: Homogeneous TPO membrane

L type: with fabric backing
P type: reinforced with fiber

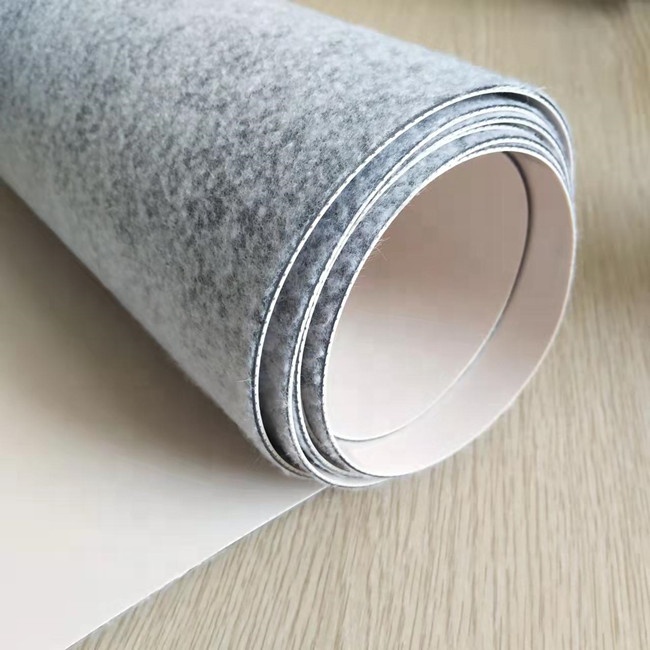

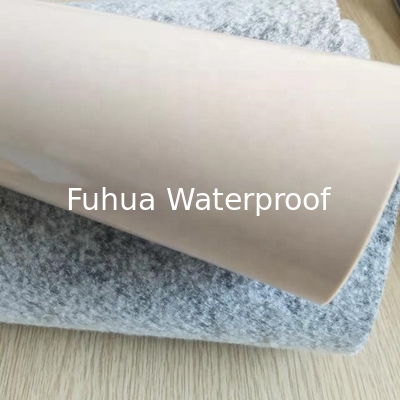

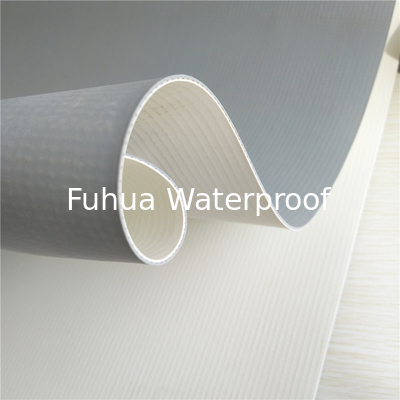

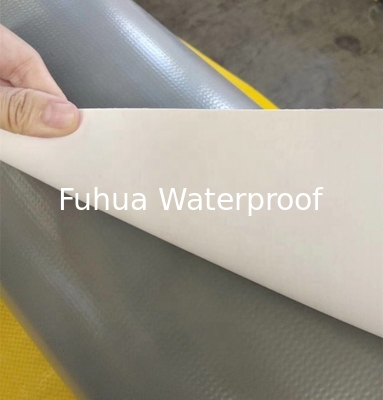

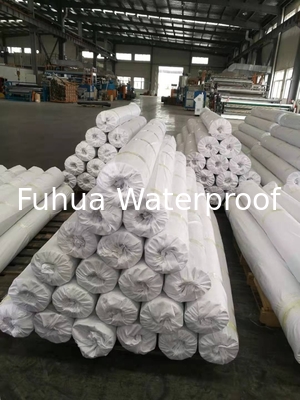

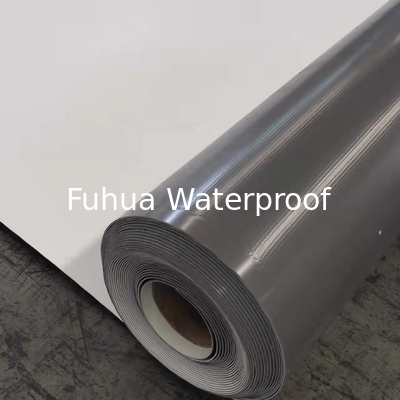

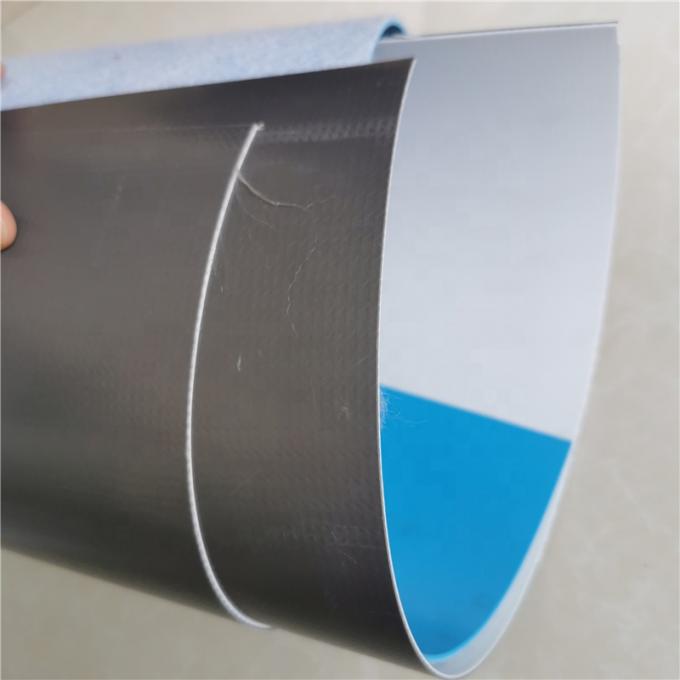

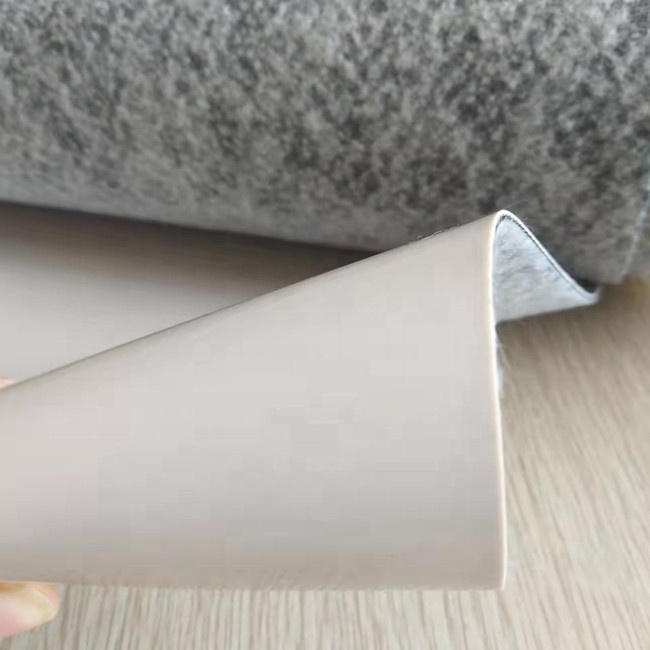

TPO membrane shows



FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 0



FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 1



FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 2



 FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 3



FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 4



FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 5



 FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 6



 FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 7







Charateristice:



1. Easy installation and dimensional stability: Able to be wieldable under wide range of temperature and experience minus dimensional change in thermal treatment

2. High tensile strength and elongation thus can accommodate movements of substrates

3. Good flexibility under low temperature, good adaptability to ambient temperature difference

4. Secure anti-puncture and good rooting resistance, no pollution caused to environment when being welded and good waterproofing choice for plant roofs.

5. Good plasticity: Convenient and fast treatment of detailed parts of corners and edges

6. 3 meters width reduces the joints and helps saving materials or labor cost.



Technical Parameters

FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 8



Usage:



Widely applied on various kinds of waterproofing projects:

1. Subways and tunnels

2. Roofs of sports complex

3. Green roofs

4. Exposed roofs

5. Steel roofs

6. Waste land filling yards



FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 9FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 10



Packaging & Shipping



Rolled with hard materials and packed with plastic bags or woven bags.



Thickness

Roll Size

Rolls / Pallet

Pallets / 20’ Container

1.2 mm

15 m2

25

20

20 m2

25

30 m2

25

1.5 mm

15 m2

25

20 m2

25

30 m2

20





FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 11







Our Services



1.   Our warranty period is one year against the date of shipment.

2.   Free samples of waterproof membranes are available for your closer checking.

3.   Well trained and experienced sales person to help you with any of your questions.

4.   Strong technical support.

5.   We will handle with each piece of document which are necessary during export to abroad and try our best to provide any special required document in destination customs. Such as the certificate of origin.



 FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 12



FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 13



Company Information

Fuhua Waterproofing Technology Co.,Ltd., as one of the biggest specialized building materials manufacturing enterprising in Shandong province,group operated with a comprehensive products range and strong producing capacity, yearly manufactures SBS/APP modified bitumen waterproof membrane and self adhesive modified bitumen membrane 5million sqm., polythene and polypropylene polymer compound waterproof membrane 2million sqm., PVC/EPDM/TPO waterproof membrane 2 million sqm., colorful polyurethane waterproof coatings 3000tons and so on.

All products got the approval of ISO9001 and ISO14001 certificate, parts CE certificate and some of products has reached American ASTM accredtion standard.

We have exported  to Southern east Asia, Middle east, Europe, Africa, America and Australia widly. Go to the world and service the world,we intent to take your hands to create one brilliant future in building materials industry.

 FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 14FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 15



FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 16FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 17

FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 18



FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 19

FAQ

 FUHUA TPO Waterproof Membrane in 1.0mm/1.2mm/1.5mm/1.8mm/2.0mm Thickness for Chinese Design Style Roofing Material 20
