Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier

Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier

Brand Name: fuhua
Model Number: dimpled membrane
MOQ: 500 square meters
Price: CN¥4.35-26.09/square meters
Supply Ability: 20000 Square Meter/Square Meters per Day foundation wrap wall insolation HDPE foil
Detail Information
Place of Origin:
Shandong, China
Type:
Dimpled Waterproofing
Product Name:
Dimpled Membrane Drainage For Wall
Usage:
Wall
Material:
HDPE
Thickness:
0.8mm-2.0mm
Color:
Black,white, Any Color,brown
Unit:
Piece Roll
Keyword:
Foundation Wrap Wall Insolation HDPE Foil
Weight/square Meter:
400g/m2 At Least
Dimpled Height:
0.8mm At Least
Port:
Qingdao China
Packaging Details:
foundation wrap wall insolation HDPE foil: by piece
Supply Ability:
20000 Square Meter/Square Meters per Day foundation wrap wall insolation HDPE foil
Product Description

                    foundation wrap wall insolation HDPE foil

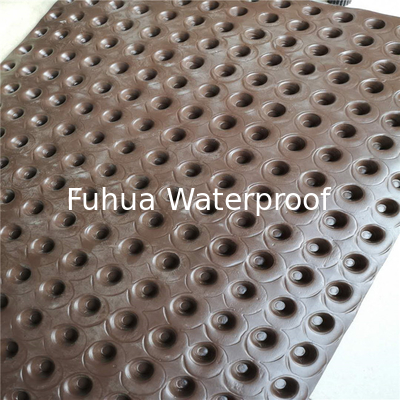

Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 0



                                                         HDPE Drainage board


Drainage board is made of HDPE with high impact resistance and pressure resistance which can resist long-term high pressure, and will not generate deformation. The long-term pressure resistance not only can resist weight of concrete bottom plate and its load, but also can bear unavoidable outside pressure and impact force during construction, for example, vehicle, worker stepping, concrete pouring impact force, etc. It can keep bottom plate undeformed for long term, so original drainage quantity can be kept. Application of filter layer earthwork fabric on bottom plate is to ensure drainage channel is not blocked by foreign object, for example, backfilling particle or concrete.

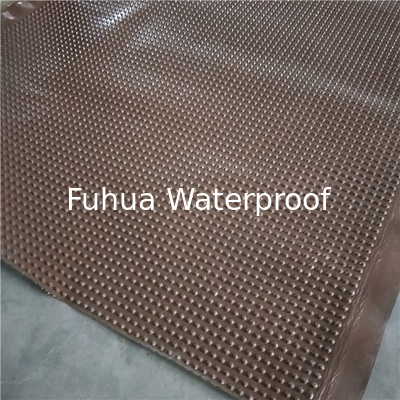

Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 1
Specifications
material
HDPE
thickness
0.8mm-2.0mm
dimple height
8mm,12mm,16mm,20mm,25mm,30mm,40mm,50mm,60mm
width
1m-3m
length
10-15mby roll
weight
400g/m2-1270g/m2
color
black, white, green .brown or your needs
Whole thickness(single or double side)
1.0mm-40mm
drain capacity
5.6-24.8cm3/s
Products details

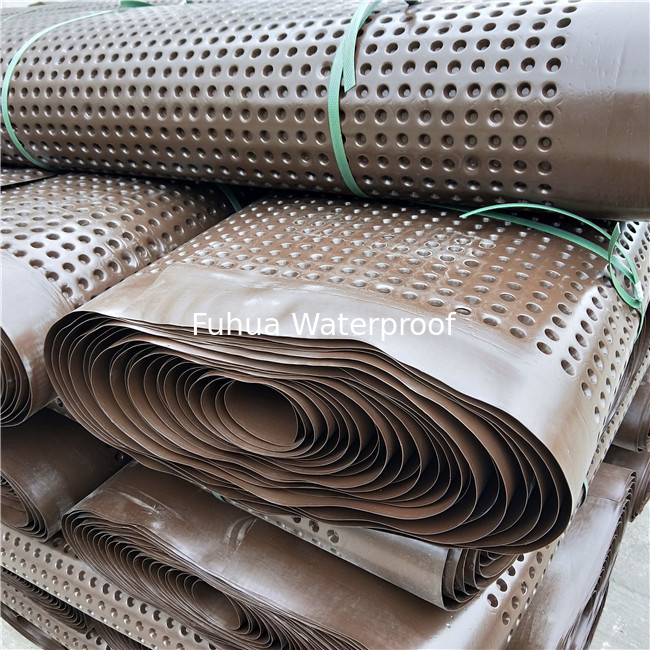

Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 2

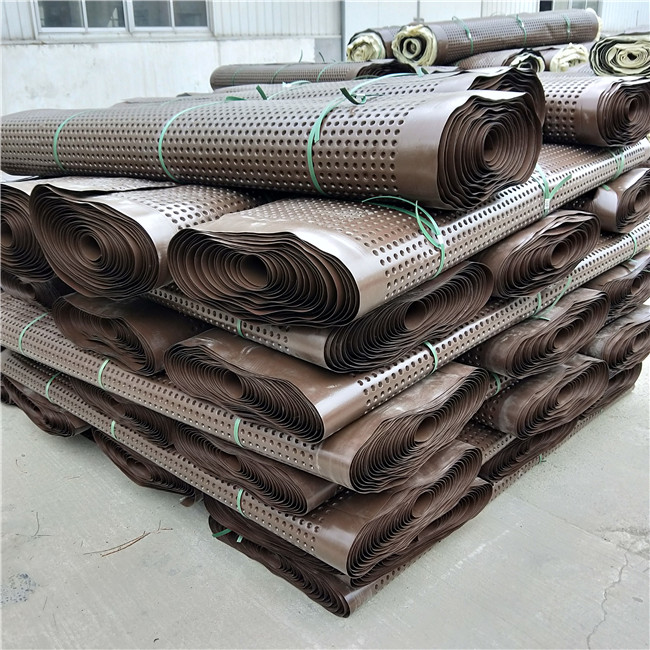

Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 3

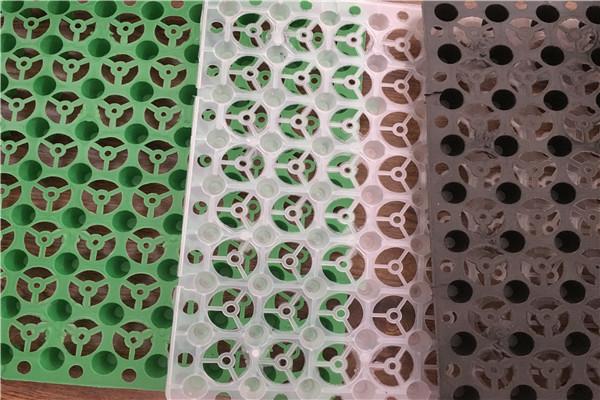

Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 4

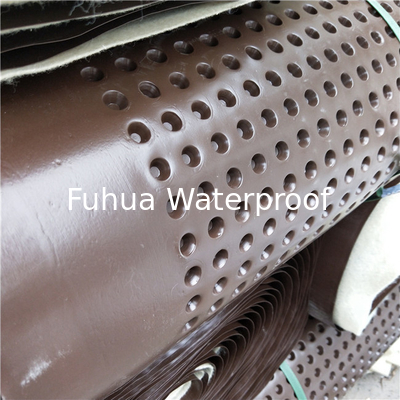

Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 5

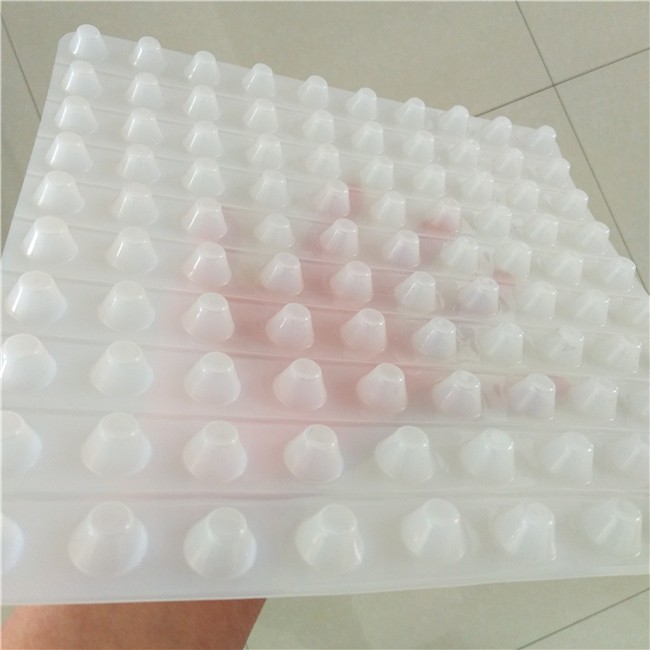

Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 6
Product Application
Where to use:
1. Landscape engineering:garage top greenng, roof garden, football field, golf course, beach project.

2. Municipal engineering:road base,subway,tennel, landfill.

3. Construction engineering:upper or bottom layer of building foundation,basement wall, bedding fltration and heat insulation.

4. Traffic engineering: highway,railway basement, dam and slope.

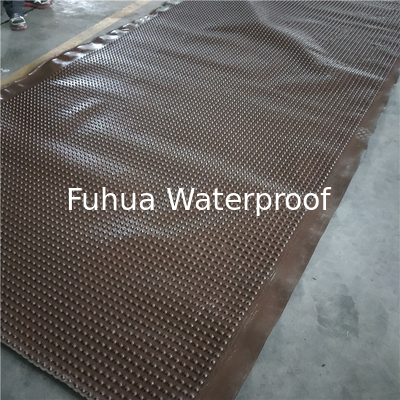

Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 7

How to use:

Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 8
Factory overview
Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 9
Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 10
Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 11
Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 12
Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 13
Packing & Delivery
Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 14
Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 15
Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 16
Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 17

Packing: bulk roll, 10-30m/roll

Certificate
Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 18
Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 19
Foundation Wrap Wall Insolation HDPE Foil 400g/m2 Weight Moisture Barrier 20


FAQ

Q1:How to get the sample?
A :We can provide you free samples for quality inspection.


Q2:What's are the MOQ?
A :The MOQ is 500 square meters usually.Also we can according to your condition to set the MOQ.

Q3:How about the delivery time?
A :Delivery time about 7days after your deposit or L/C at sight.

Q4:Can we visit your factory to inspect the goods for the order?
A :Welcome to visit our factory to inspect the quality.We sincerely hope to establish a  honest business relationship.
