anti-uv materials Thermoplastic Polyolefin TPO waterproofing membrane for steel/wood/concrete

Brand Name:	Fuhua
Model Number:	FH-TPO
MOQ:	100 square meters
Price:	FOB Qingdao USD1.00-5.00/KG
Payment Terms:	T/T, L/C, D/P, or others
Supply Ability:	4 million square meters per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001, ISO14001, ISO45001, CE

Width:

1m, 2m, 2.05m, 3M, 4M

Length:

20m

Thickness:

1.0mm, 1.2mm, 1.5mm, 2.0mm

Color:

White, Grey

Type:

Homogeneous TPO Membrane, Reinforcement TPO Membrane, Self-adhesive TPO Membrane, TPO Membrane With Fabric,

Useage:

Building Waterproof Material

Application:

Roofs Tunnel Pool Basement Garbage Disposal Facilities

Surface:

Smooth, Embossed And Customized

Material:

TPO

Packaging Details:

Plastic Bag

Supply Ability:

4 million square meters per month

Product Description

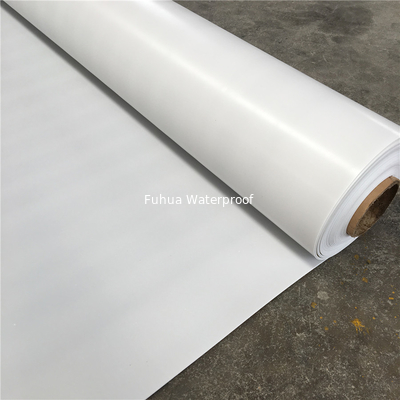

TPO waterproof membrane is a waterproof sheet, consisting of thermoplastic polyolefin compound resin materials as the base stock, also reinforced with fiber backing materials, and manufactured by advanced extrusion machining technology.

anti-uv materials Thermoplastic Polyolefin TPO waterproofing membrane for steel/wood/concrete 0

Specification:

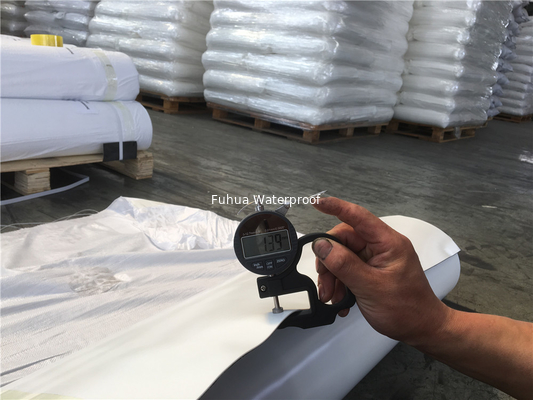

Thickness(mm) - 1mm, 1.2mm, 1.5mm, 1.8mm, 2.0mm

Width(m) - 1/2/2.05

Length(m/roll) - 10/15/20

Color - Black, White or as customized

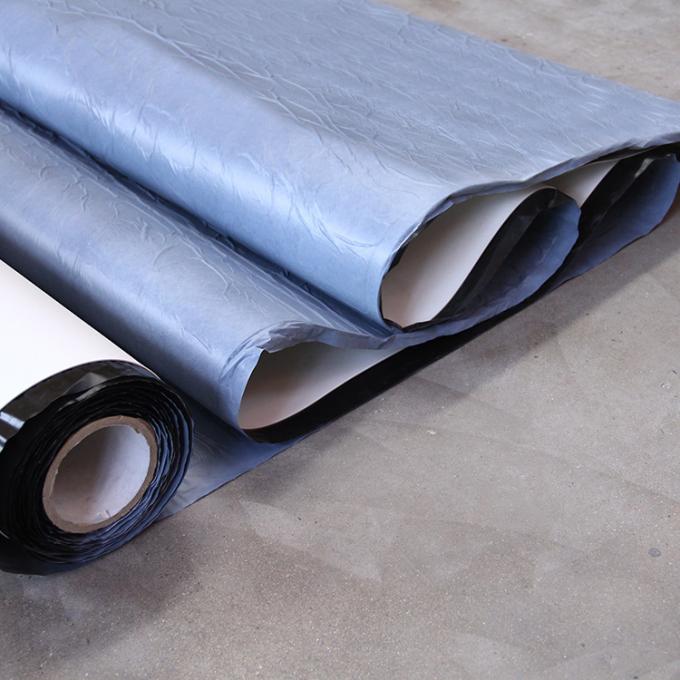

anti-uv materials Thermoplastic Polyolefin TPO waterproofing membrane for steel/wood/concrete 1

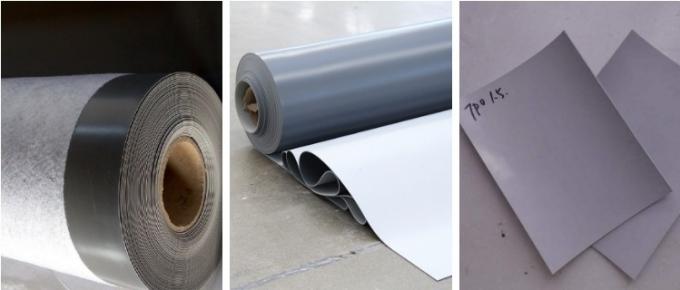

anti-uv materials Thermoplastic Polyolefin TPO waterproofing membrane for steel/wood/concrete 2

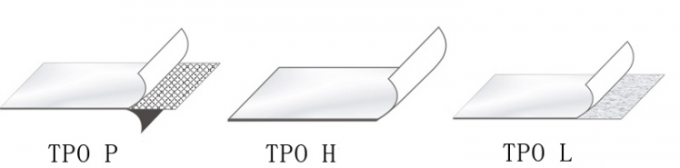

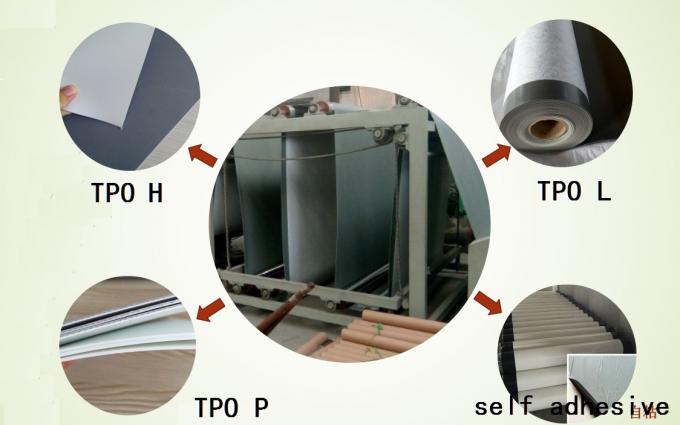

Type:

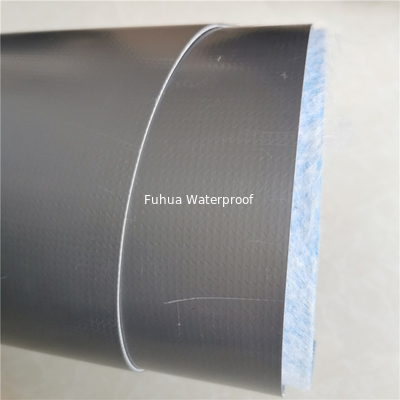

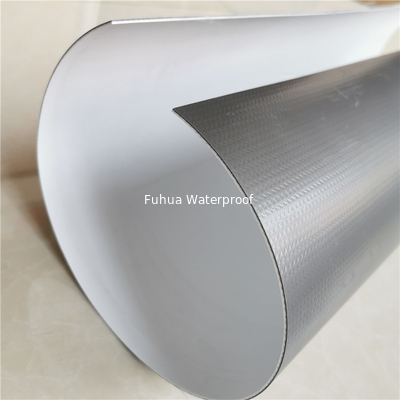

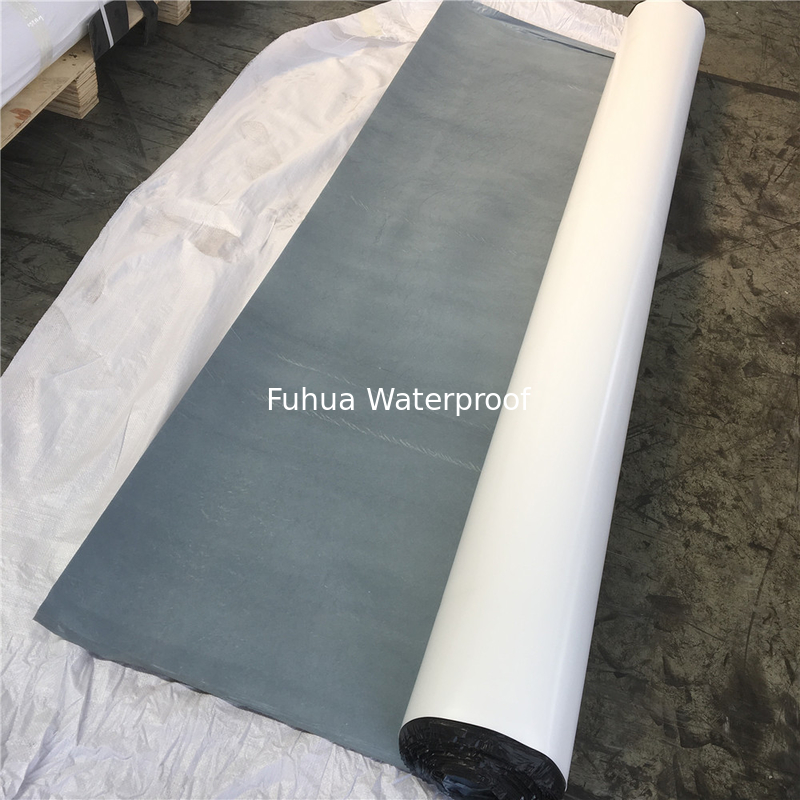

H type: Homogeneous TPO membrane

L type: with fabric backing

P type: reinforced with fiber

anti-uv materials Thermoplastic Polyolefin TPO waterproofing membrane for steel/wood/concrete 3

Charateristics:

1. Easy installation and dimensional stability: Able to be wieldable under wide range of temperature and experience minus dimensional change in thermal treatment

2. High tensile strength and elongation thus can accommodate movements of substrates

3. Good flexibility under low temperature, good adaptability to ambient temperature difference

4. Secure anti-puncture and good rooting resistance, no pollution caused to environment when being welded and good waterproofing choice for plant roofs.

5. Good plasticity: Convenient and fast treatment of detailed parts of corners and edges

6. 3 meters width reduces the joints and helps saving materials or labor cost.

				Specification

			H	L		P	G	GL

The resin thickness of middle fabric, mm≥				－			0.40

Maximum tension,N/cm≥				200		250		200

Tension strength, Mpa≥			12.0				12.0

Maximum tension elongation,%≥						15

Breaking elongation, %≥			500	250			400	200

Heat treatment size change rate,%≥			2.0	1.0		0.5	0.1	0.1

Low temperature bend				－40℃ No crack

	Impermeable			0.3Mpa, 2h. No seepage

Attack resistance				0.5kg m, No seepage

Static charge resistance						20KG, No seepage

Seam strip strength,N/mm≥			4.0ormembrane break				3.0

Right-angel tear strength,N/mm≥			60				60

Trapezoid tear strength N≥			－	300		450		350

Water absorption(70℃ 168h)%≤					4.0

Heat aging		Time			672h
(115℃)
		Appearance	No blister, flaw, delaminatio, coherence, hole

		Tensile strength retention,%≥			90

		Elongation rate of keeping,%≥			90

		Low temperature bend		－40℃, no crack

Chemistry		Appearance	No blister, flaw, delamination, coherence, hole
resistance
		Tensile strength retention,%≥			90

		Elongation rate of keeping,%≥			90

		Low temperature bend		－40℃, no crack

Artificial weather		Time			1500h
accelerated aging
		Appearance	No blister, flaw, lamination, coherence, hole

		Tensile strength retention,%≥			90

		Elongation rate of keeping,%≥			90

		Low temperature bend		－40℃, no crack

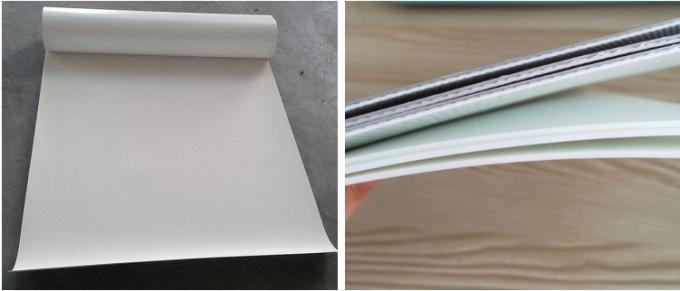

anti-uv materials Thermoplastic Polyolefin TPO waterproofing membrane for steel/wood/concrete 4

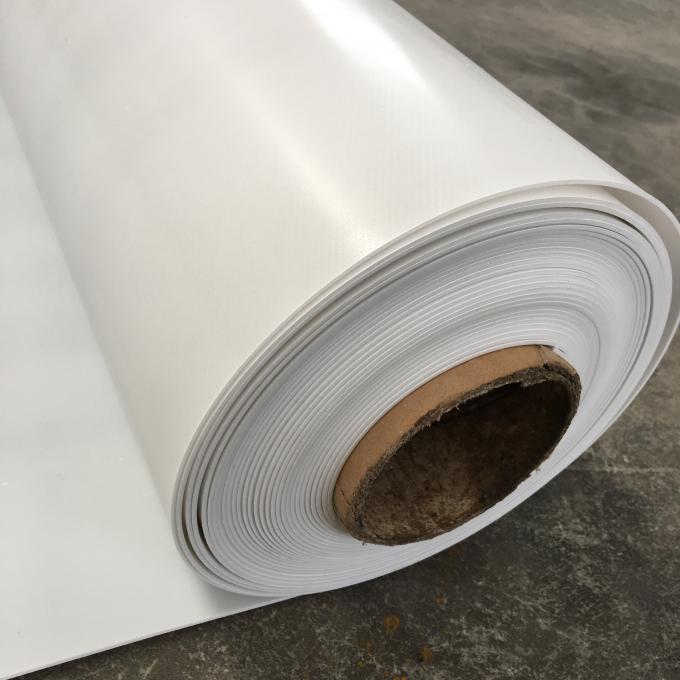

anti-uv materials Thermoplastic Polyolefin TPO waterproofing membrane for steel/wood/concrete 5

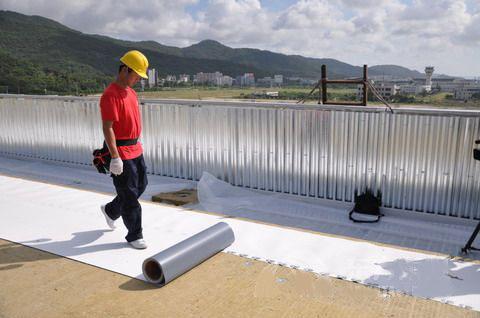

Usage:

Widely applied on various kinds of waterproofing projects:

1. Subways and tunnels

2. Roofs of sports complex

3. Green roofs

4. Exposed roofs

5. Steel roofs

6. Waste land filling yards

anti-uv materials Thermoplastic Polyolefin TPO waterproofing membrane for steel/wood/concrete 6

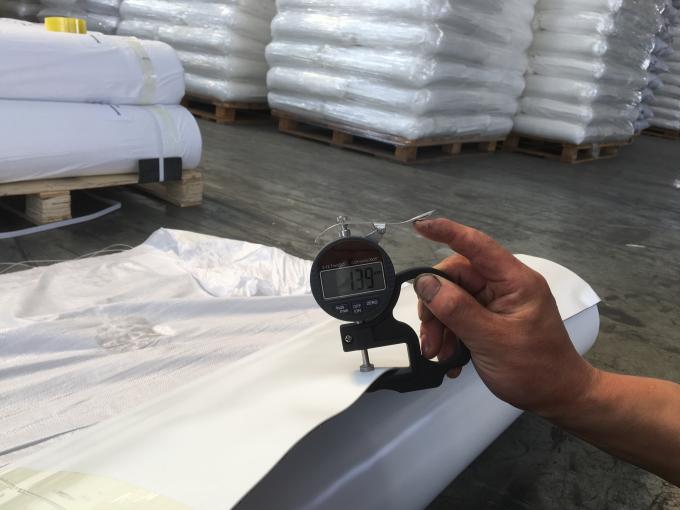

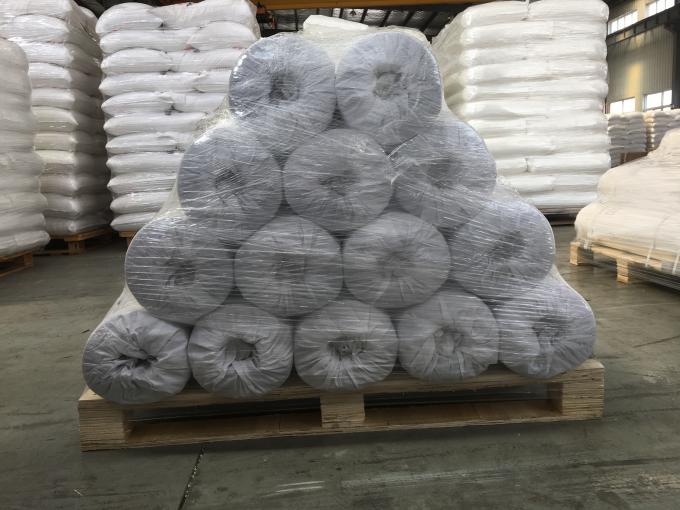

Packaging:

Rolled with hard materials and packed with plastic bags or woven bags.

anti-uv materials Thermoplastic Polyolefin TPO waterproofing membrane for steel/wood/concrete 7

Our Services

1. Our warranty period is one year against the date of shipment.

2. Free samples of waterproof membranes are available for your closer checking.

3. Well trained and experienced sales person to help you with any of your questions.

4. Strong technical support.

5. We will handle with each piece of document which are necessary during export to abroad and try our best to provide any special required document in destination customs. Such as the certificate of origin.

anti-uv materials Thermoplastic Polyolefin TPO waterproofing membrane for steel/wood/concrete 8
