factory wholesale swimming UV protection pvc pool liner material 0.6mm

factory wholesale swimming UV protection pvc pool liner material 0.6mm

    • factory wholesale swimming UV protection pvc pool liner material 0.6mm
    • factory wholesale swimming UV protection pvc pool liner material 0.6mm
  • factory wholesale swimming UV protection pvc pool liner material 0.6mm

    Product Details:

    Place of Origin: China
    Brand Name: Fuhua
    Certification: ISO9001, ISO14001
    Model Number: FH-PVC05

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 square meters
    Price: FOB Qingdao USD0.50-5.00 per square meters
    Packaging Details: Plastic Bag
    Delivery Time: 7 days after order confirmation
    Payment Terms: T/T, L/C, D/P, or others
    Supply Ability: 4 million square meters per month
    Contact Now
    Detailed Product Description
    Type: Smooth, Embossing Roll Length: 20 Meters
    Width: 1.83m Or Custom Thickness: 1.2mm, 1.5mm
    Color: Blue, Mosaic, White ,yellow Or Others UV Resistance: Yes

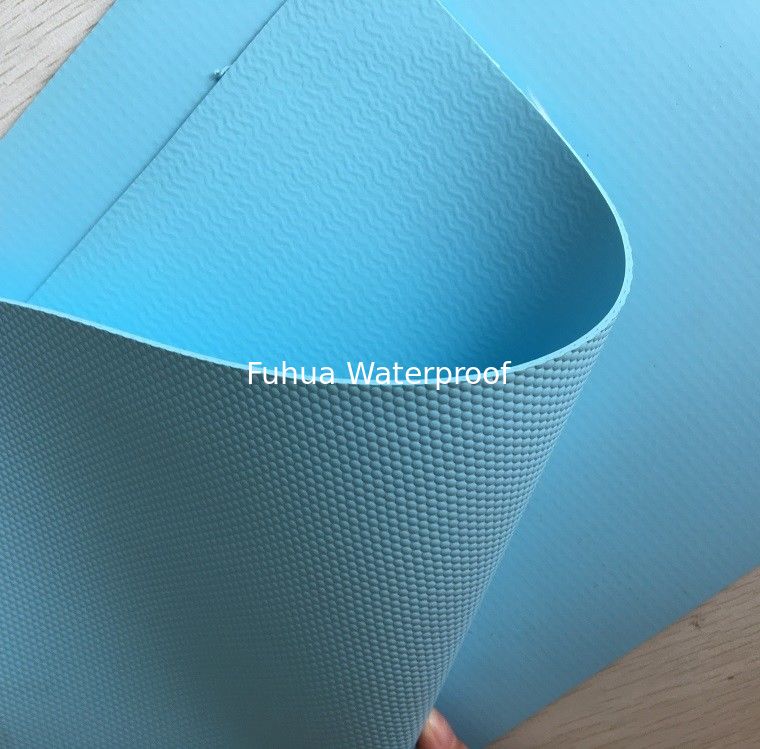

    factory wholesale swimming UV protection pvc pool liner material 0.6mm
    PVC Waterproof Membrane is one kind of polymer waterproof with high quality, it is made from polyvinyl chloride resin, mixed with plasticizer, filler, antioxygen, ultraviolet absorber and other auxiliaries.
    factory wholesale swimming UV protection pvc pool liner material 0.6mm

    Specification
    No. Items Technical Data
    H L P G GL
    1 Upper Resin Thickness   ≥0.40mm
    2 Tensile Property Max. Tension (N/cm) - ≥120 ≥250 - ≥120
    Tensile Strength (MPa) ≥10 - - ≥10 -
    Elongation /Max. Tension - - ≥15% - -
    Breaking Elongation ≥200% ≥150% - ≥200% ≥100%
    3 Dimensional Changing when Heating ≤2.0% ≤1.0% ≤0.5% ≤0.1% ≤0.1%
    4 Low Temperature Flexibility -25℃, No cracking
    5 Impermeability 0.3Mpa, 120 Minutes, No leaking
    6 Shock Resistance 0.5kg·m, No leaking
    7 Static Load Resistance - - 20kg, No leaking
    8 Joint Peel Strength (N/mm) ≥4.0 ≥3.0
    9 Right-angled Tearing Strength (N/mm) ≥50 - - ≥50 -
    10 Trapezoid Tearing Strength (N) - ≥150 ≥250 - ≥220
    11 Water Absorption Coefficient After dipping 70℃, 168 hours, ≤4.0%
    After sun-cure 70℃, 168 hours, ≥-0.40%
    12

    Thermal Aging

    (80℃)

    Time 672 hours
    Appearance No bubbling, cracking, layering, cohering or holes
    Holding / Max. Tension - ≥85% ≥85% - ≥85%
    Tensile Strength Holding ≥85% - - ≥85% -
    Elongation Holding / Max. Tension - - ≥80% - -
    Breaking Elongation Holding ≥80% ≥80% - ≥80% ≥80%
    Low Temperature Flexibility -20℃, No cracking
    13 Chemical Resistance Appearance No bubbling, cracking, layering, cohering or holes
    Holding / Max. Tension - ≥85% ≥85% - ≥85%
    Tensile Strength Holding ≥85% - - ≥85% -
    Elongation Holding / Max. Tension - - ≥80% - -
    Breaking Elongation Holding ≥80% ≥80% - ≥80% ≥80%
    Low Temperature Flexibility -20℃, No cracking
    14 Artificial Weathering Aging Time 1500 hours (single-ply roofing 2500 hours)
    Appearance No bubbling, cracking, layering, cohering or holes
    Holding / Max. Tension - ≥85% ≥85% - ≥85%
    Tensile Strength Holding ≥85% - - ≥85% -
    Elongation Holding / Max. Tension - - ≥80% - -
    Breaking Elongation Holding ≥80% ≥80% - ≥80% ≥80%
    Low Temperature Flexibility -20℃, No cracking

    Product Features:
    1) Long life, aging-resistant, roofing materials can be over 20 years, and if underground use it can be 50 years.
    2) High tensile strength, high extensibility, small dimensional change when heat treatment.
    3) Good flexibility under low temperature, good variability to be adaptable to temperature difference of the environment.
    4) Good rootage penetration resistibility, suitable to be used for planted roof.
    5) Good perforating resistibility.
    6) Convenient for construction, weldable, firm and secure, environmental protective and pollution free.
    7) Strong chemical resistance, adaptable to special situations.
    8) Good plasticity, convenient and fast treatment on delicate parts of corners and edges.
    9) Easy maintenance, low cost.
    Application:
    1) Roof construction and steel structure of both industrial and civil engineering.
    2) Underground engineering, such as subways, tunnels, air Raid shelter, etc.
    3) Other projects, for example, dam, water reservoir, artificial lake, roof for plant and others.

    Storage and Transportation:
    1) Separate storage for different models.
    2) Temperature should be below 45℃.
    3) Avoid direct sunshine, rain, keep ventilated.
    factory wholesale swimming UV protection pvc pool liner material 0.6mm
    factory wholesale swimming UV protection pvc pool liner material 0.6mm
    Thickness: 1.2mm, 1.5mm, 2.0mm
    Width: 2.05m, or customized width
    Length: 20m, or customized width
    Color: White, Green, Blue, or customized color

    factory wholesale swimming UV protection pvc pool liner material 0.6mm
    factory wholesale swimming UV protection pvc pool liner material 0.6mm
    factory wholesale swimming UV protection pvc pool liner material 0.6mm
    factory wholesale swimming UV protection pvc pool liner material 0.6mm
