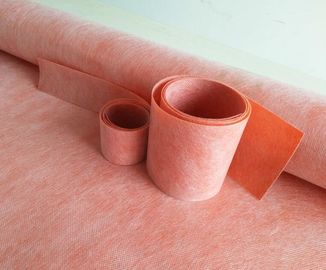

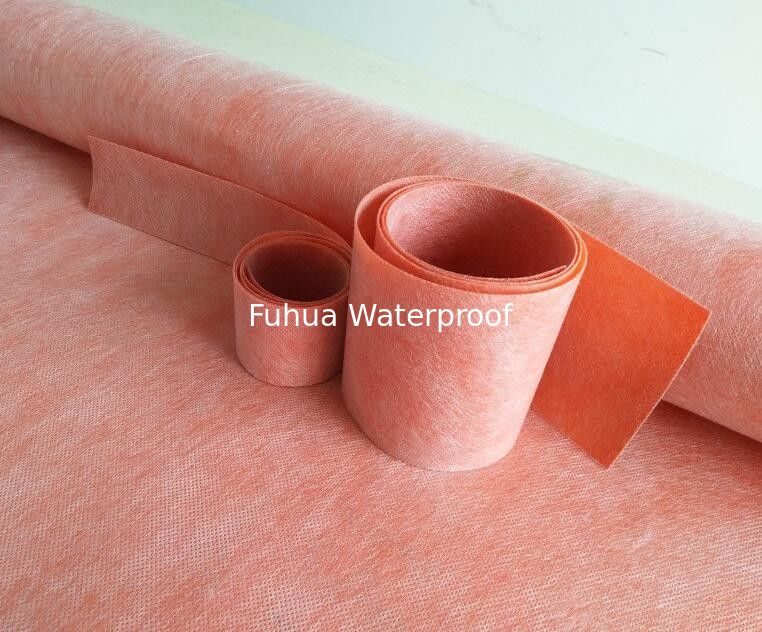

Waterproofing Fabric is one kind of Polyethylene polypropylene waterproofing membrane, it is multi-layer polymer waterproof membrane, its base materials are polypropylene fiber and polyethylene, adding some chemical auxiliaries, totally four layers, protective layer, anti-aging layer, waterproof layer, adhesive layer.
No. |
Items |
Technical Data |
1 |
Tensile Strength (N/CM) |
Normal temperature: > 60 ; > 60℃:30 |
2 |
Breaking Elongation % |
Normal temperature: > 400 ; > -20℃:10 |
3 |
Tear Resistance N |
> 20 |
4 |
Impermeability, 30 Min no leakage |
0.3Mpa |
5 |
Low Temperature Bending ℃ |
< -20 |
6 |
Heating Shrinking (mm) |
Extension: > 2; Shrink: > 4 |
7 |
Heat Resistance (80℃×168h) |
Tensile Strength % : > 80 ; Keeping rate of adhesive breaking: > 70 |
8 |
Alkali resistance (10% Ca (OH)2 solution, normal temperature, 168h) |
Tensile Strength % : > 80 ; Keeping rate of adhesive breaking: > 80 |
9 |
Synthetic aging |
Tensile Strength % : > 80 ; Keeping rate of adhesive breaking: > 80 |
Product Features:
1) Non-toxic, no smell, no pollution.
2) Anti-aging, anti-oxidant, corrosion resistant.
3) Good flexibility, tensile strength and anti-perforation well.
4) It can be the same life time with buildings.
5) Easy operation.
Application:
1) Roofs, underground, tunnel.
2) Industrial and civil building waterproof.

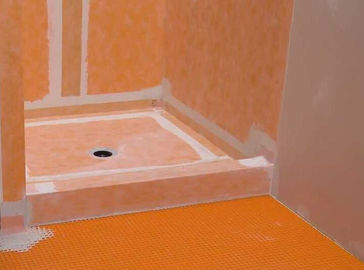

3) Geo-synthetic liner for swimming pool, channels, irrigation system
4) Especially for projects with high requirements in durability, anti-corrosion and deformation.
Attention:
1) Do not operate when rain, snow, strong wind.
2) Train before operation.
Storage and Transportation:
1) Package in plastic bag.
2) Separate storage for different models.
3) Avoid direct sunshine, rain, keep ventilated.
4) Do not piled more than 5 floors together if horizontal, 1 floor if stand.
Weight: 200g to 1200g per square meters
Width: 0.1m to 1.5m
Length: 100m / roll, 50m / roll, 30m / roll
Color: Orange, Blue, Green, Black, Gray, and other customized color.
