    Product Details:

    Place of Origin: China
    Brand Name: Fuhua
    Certification: ISO9001, ISO14001, CE
    Model Number: FH-PVC

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 square meters
    Price: FOB Qingdao USD0.50-5.00 per square meters
    Packaging Details: Plastic Bag
    Delivery Time: 7 days after order confirmation
    Payment Terms: T/T, L/C, D/P, or others
    Supply Ability: 4 million square meters per month
    Contact Now
    Detailed Product Description
    Width: 1.83m, 2.0m, 2.05m Roll Length: 20 Meters
    Material: PVC Color: Blue
    Surface Treatment: Smooth, Embossed Or Customized Application: Swimming Pool

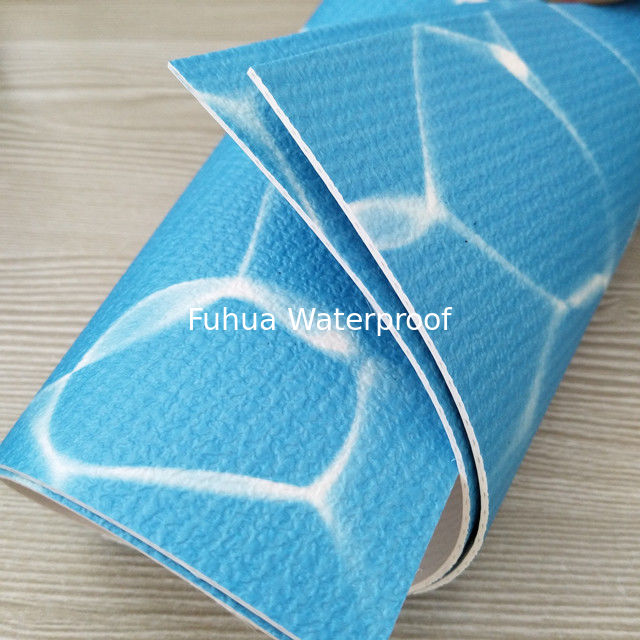

    PVC Swimming Pool liner is one kind of Polyvinyl chloride liner, reinforced with polyester mesh, mixing additives, stabilizers, etc. The product is corrosion-resistant and chlorine-resistant. It has excellent size stability and lower thermal expansion coefficient, so it has strong adaptability to the external environment.

    No. Items

    Technical Data



    1 Weight per square meter (kg/m2) 1.9(±10%)
    2 Density (g/m3) 1.23(±10%)
    3 Low Temperature Flexibility No cracking
    4 Flame Resistance B1
    5 Impermeability No leaking
    6 Tensile Strength MD(N/cm) ≥180
    TD(N/cm) ≥180
    7 Breaking Elongation MD(%) ≥120
    TD(%) ≥120
    8 Tear Strength MD(%) ≥75
    TD(%) ≥75
    9 Heat treatment dimensional change rate MD(%) ≤0.2
    TD(%) ≤0.2


    Product Features:
    1) Long life, aging-resistant, roofing materials can be over 20 years, and if underground use it can be 50 years.
    2) High tensile strength, high extensibility, small dimensional change when heat treatment.
    3) Good flexibility under low temperature, good variability to be adaptable to temperature difference of the environment.
    4) Good rootage penetration resistibility, suitable to be used for planted roof.
    5) Good perforating resistibility.
    6) Convenient for construction, weldable, firm and secure, environmental protective and pollution free.
    7) Strong chemical resistance, adaptable to special situations.
    8) Good plasticity, convenient and fast treatment on delicate parts of corners and edges.
    9) Easy maintenance, low cost.

    Application:
    1) Swimming Pool.
    2) Roof construction and steel structure of both industrial and civil engineering.
    3) Underground engineering, such as subways, tunnels, air Raid shelter, etc.
    4) Other projects, for example, dam, water reservoir, artificial lake, roof for plant and others.

    Storage and Transportation:
    1) Separate storage for different models.
    2) Temperature should be below 45℃.
    3) Avoid direct sunshine, rain, keep ventilated.

    Thickness: 1.2mm, 1.5mm, 2.0mm
    Width: 2.05m, or customized width
    Length: 20m, or customized width
    Color: White, Green, Blue, or customized color
